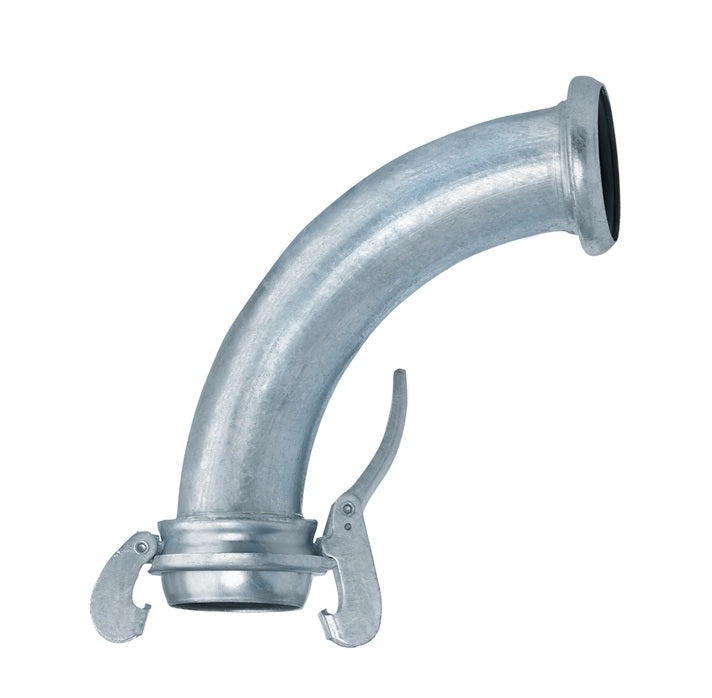

SLB-90EL400 by Kuriyama | SLB-90EL Series | SPHERE LOCK™ Bauer Coupling with Locking Lever Ring | Type B | 90° Elbow | 4" Female Socket x 4" Male Ball | Galvanized Steel

Save $36.20

$173.95

$173.95 - $173.95

$173.95

$137.75

$137.75 - $137.75

$137.75

For the transfer of freshwater or wastewater in agricultural, construction, septic, mining and other industrial applications.

Specifications for Variant SKU: SLB-90EL400 Kuriyama
Brand:	SPHERE LOCK
Series:	SLB-90EL Series
Shape (Orientation):	90 Degree
Ends Configuration:	4in Male Bauer - Type B, 4in Female Bauer - Type B
Material(s):	Galvanized Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Sphere Lock couplings, also referred to as ball and socket couplings, consist of male (ball) and female (socket) ends.
The rounded male end nests in the concave female end, which contains a Buna gasket for sealing.
The connection is tightened by pushing down on a lever or bar.
Highly durable, with excellent resistance to impacts and vibration, making them ideal for highly demanding outdoor applications.
Able to handle full vacuum and higher pressures than standard cam-lock couplings.
Allows for greater ease when connecting than most other coupling types. Whereas most other couplings must be aligned perfectly straight, Sphere Lock couplings can connect at angles of up to 30°, which is beneficial when conditions make a perfectly straight connection difficult.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
SLB-90EL400	4"	217	12.05 lbs
SLB-90EL600	6"	175	26.09 lbs
SLB-90EL800	8"	175	32.76 lbs
SLB-90EL1200	12"	175	79.71 lbs
