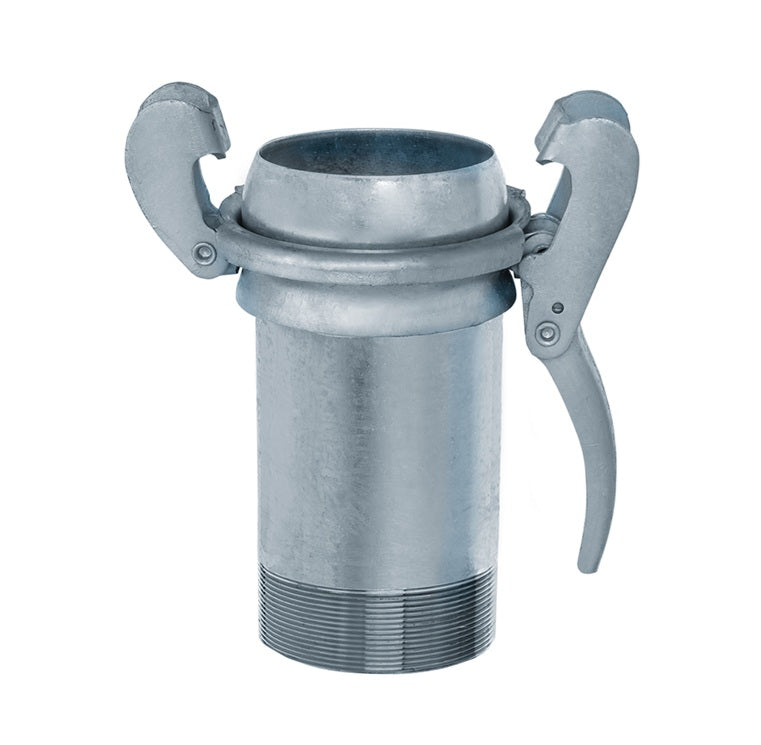

SLB-MP300 by Kuriyama | SLB-MP Series | SPHERE LOCK™ Bauer Coupling with Locking Lever Ring | Type B | 3" Male Ball x 3" Male NPT | Galvanized Steel

Save $20.35

$83.02

$83.02 - $83.02

$83.02

$62.67

$62.67 - $62.67

$62.67

Kuriyama of America Inc.
SPHERE LOCK™ Bauer Coupling with Locking Lever Ring | Type B | SLB-MP Series | Male Ball x Male NPT | Galvanized Steel

For the transfer of freshwater or wastewater in agricultural, construction, septic, mining and other industrial applications.

Specifications for Variant SKU: SLB-MP300 Kuriyama
Brand:	SPHERE LOCK
Series:	SLB-MP Series
Shape (Orientation):	Straight
Ends Configuration:	3in Male Bauer - Type B, 3in Male NPT
Material(s):	Galvanized Steel

Sphere Lock couplings, also referred to as ball and socket couplings, consist of male (ball) and female (socket) ends.
The rounded male end nests in the concave female end, which contains a Buna gasket for sealing.
The connection is tightened by pushing down on a lever or bar.
Highly durable, with excellent resistance to impacts and vibration, making them ideal for highly demanding outdoor applications.
Able to handle full vacuum and higher pressures than standard cam-lock couplings.
Allows for greater ease when connecting than most other coupling types. Whereas most other couplings must be aligned perfectly straight, Sphere Lock couplings can connect at angles of up to 30°, which is beneficial when conditions make a perfectly straight connection difficult.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
SLB-MP200	2"	290 PSI	3.04 lbs
SLB-MP300	3"	290 PSI	6.18 lbs
SLB-MP400	4"	217 PSI	10.62 lbs
SLB-MP600	6"	175 PSI	22.61 lbs
SLB-MP800	8"	175 PSI	38.18 lbs
