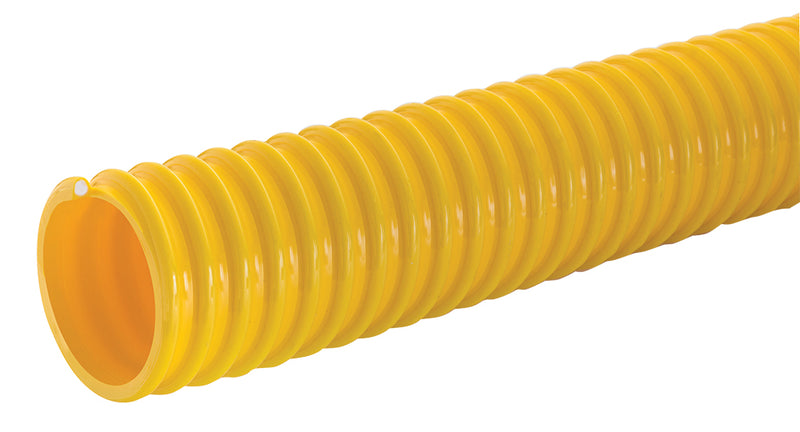

SLR600X100 Tigerflex® SOLARGUARD™ by Kuriyama | SLR™ Series | Liquid Suction Hose with High UV Resistance | PVC | 6" ID | 7.00" OD | 100ft Length
SLR600X100 Tigerflex® SOLARGUARD™ by Kuriyama | SLR™ Series | Liquid Suction Hose with High UV Resistance | PVC | 6" ID | 7.00" OD | 100ft Length
SLR600X100 Tigerflex® SOLARGUARD™ by Kuriyama | SLR™ Series | Liquid Suction Hose with High UV Resistance | PVC | 6" ID | 7.00" OD | 100ft Length

SLR600X100 Tigerflex® SOLARGUARD™ by Kuriyama | SLR™ Series | Liquid Suction Hose with High UV Resistance | PVC | 6" ID | 7.00" OD | 100ft Length

$0.00 - $0.00
$0.00
$2,290.80
$2,290.80 - $2,290.80
$2,290.80
p>Kuriyama of America Inc.
Tigerflex® | SOLARGUARD™ SLR™ Series | Liquid Suction Hose with High UV Resistance | PVC

Designed for agricultural and construction use.

Ideal for liquid fertilizer transfer, irrigation and air seeder lines, dewatering and trash pumps, and heavy-duty water suction applications.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: SLR600X100 Kuriyama | 100 |
Brand: SOLARGUARD, Tigerflex
Series: SLR Series
Hose Color(s): Yellow
Internal Diameter: 6in
Outer Diameter: 7.00in
Tubing Construction: PVC
Special Properties: Outer Helix Protection
Heavy Duty Water Suction Hose

Tigerflex™ SOLARGUARD™ SLR Series

UV-resistant, safety yellow PVC suction hose for water, liquid fertilizer, irrigation, dewatering and trash pump applications.

☀

Advanced UV Protection

Resists cracking from UV exposure

◉

Safety Yellow

High visibility on site

✓

Convoluted Cover

Increased hose flexibility

★

Made in the USA

Manufactured domestically

1

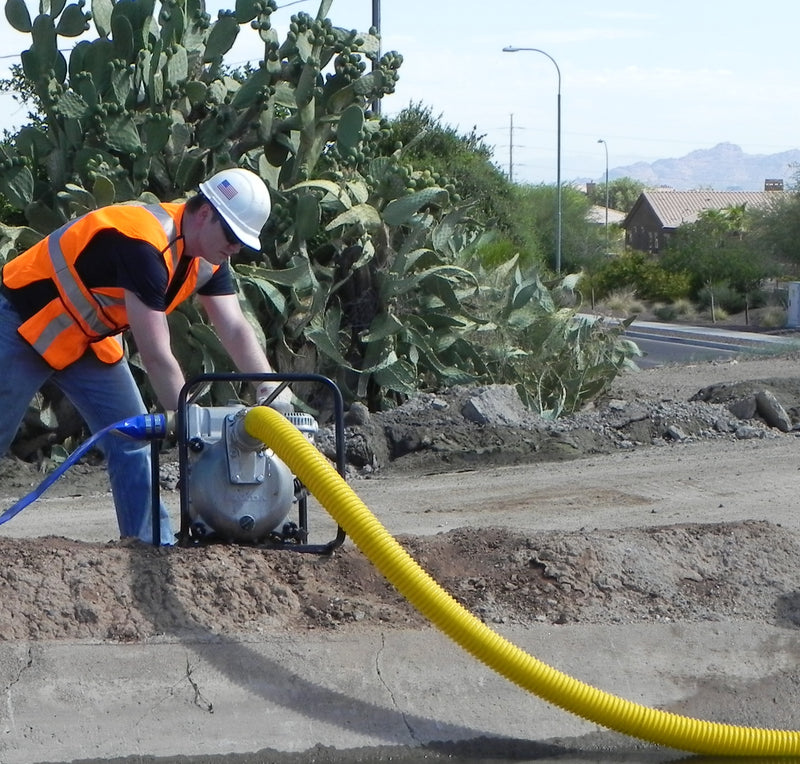

What is this product used for?
  • Agricultural liquid fertilizer
  • Air seeder lines
  • Irrigation lines
  • Pumps — rental and construction dewatering
  • Trash pumps
  • Water suction — heavy duty
2

What are the key specifications?
Tube

Flexible PVC

Reinforcement

Rigid PVC helix

Service Temperature Range

-4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Compliance

Phthalate Free (10) — see the Kuriyama Tigerflex Hose Specifications Guide PDF

3

What are the main product features?
  • Advanced UV Protection — The hose material is specially formulated to resist the cracking that can result from exposure to damaging UV light. Tests show the SOLARGUARD material retained 97% of its original tensile strength after prolonged UV exposure, compared to only 55% tensile strength retention for similar PVC hoses.*
  • "Safety Yellow" Color — For high visibility on site. Reduces risk of tripping or driving over hose.
  • Convoluted Outer Cover — Provides increased hose flexibility.
  • Made in the USA — Manufactured domestically.
4

Which sizes or configurations are available?
Part Number ID OD Working Pressure (PSI) Vacuum Rating (in Hg) Min. Bending Radius Length Weight (lbs/ft)
at 68°F at 104°F at 68°F at 104°F
SLR200X100 2" (50.8 mm) 2.40" (61.0 mm) 50 PSI 30 PSI Full 28 in Hg 3" 100 ft 0.52
SLR250X100 2-1/2" (63.5 mm) 2.99" (75.9 mm) 45 PSI 25 PSI Full 28 in Hg 4" 100 ft 0.77
SLR300X100 3" (76.2 mm) 3.64" (92.5 mm) 45 PSI 25 PSI Full 28 in Hg 6" 100 ft 1.18
SLR400X100 4" (101.6 mm) 4.76" (121.0 mm) 35 PSI 18 PSI Full 28 in Hg 8" 100 ft 1.92
SLR600X100 6" (152.4 mm) 7.00" (177.8 mm) 30 PSI 15 PSI 28 in Hg 25 in Hg 14" 100 ft 3.76
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

For more information on specification codes and hose details, consult the Kuriyama Tigerflex Hose Specifications Guide.

i
Note: Service life may vary depending on operating conditions and type of material being conveyed.
*UV test data: This information is based on independent third party test reports which are, to the best of our knowledge, complete and accurate. However, no warranty is expressed or implied, as specific application parameters such as temperature, stress and strain, and chemical exposure vary widely.
