SM2014R ZSi-Foster | C-Rail Mount Beta Clamp (Metric) | Standard Series | For 14mm Assembly | Polypropylene/Steel

SM2014R by ZSi-Foster | C-Rail Mount Beta Clamp (Metric) | Standard Series | For 14mm Assembly | Polypropylene/Steel

Save $0.40 Save $0.40
$3.97
$3.97 - $3.97
$3.97
$3.57
$3.57 - $3.57
$3.57

ZSI-Foster
Beta Hydraulic Clamps (Metric) - Standard Series - C-Rail Mount - Polypropylene / Steel

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: SM2014R ZSI-Foster
Series: Standard Series
Maximum Clamp I.D.: 14mm
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:

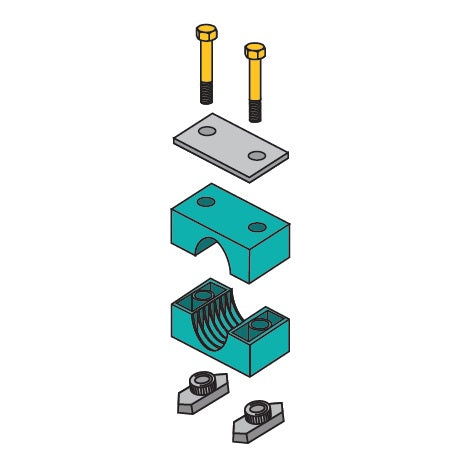

Assembly Includes:
Quantity Description
2 Each Hex Bolts
1 Each Cover Plate
1 Set Cushions
2 Each C-Rail Nuts
Part Number Size Bolt Length
SM1006R 6mm 1-1/4"
SM1008R 8mm 1-1/4"
SM1012R 12mm 1-1/4"
SM2014R 14mm 1-3/8"
SM2015R 15mm 1-3/8"
SM2018R 18mm 1-3/8"
SM3020R 20mm 1-1/2"
SM3025R 25mm 1-1/2"
SM4030R 30mm 1-3/4"
SM5035R 35mm 2-1/2"
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
