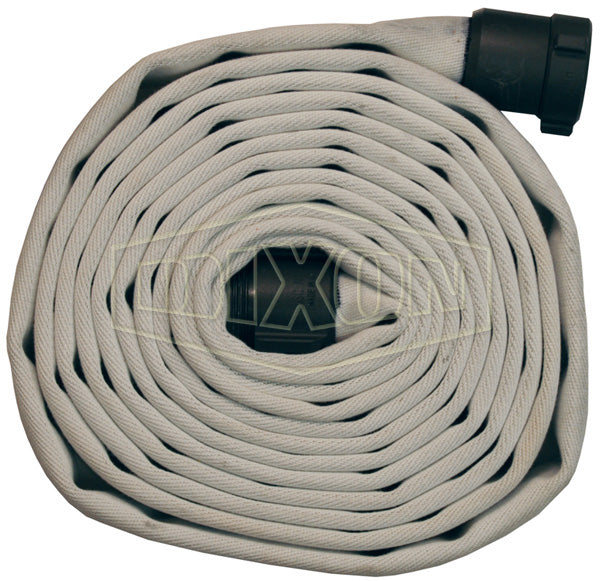

SM515W50RAS Dixon Single Jacket MSHA Approved Mine Fire Hose - Coupled - Female x Male NPSH (Aluminum) Expansion Ring Couplings - 1-1/2" Hose Size - 1-13/16" Bowl Size - 50ft Length

SM515W50RAS Dixon Single Jacket MSHA Approved Mine Fire Hose - Coupled - Female x Male NPSH (Aluminum) Expansion Ring Couplings - 1-1/2" Hose Size - 1-13/16" Bowl Size - 50ft Length

Save $48.12 Save $48.12
$433.07
$433.07 - $433.07
$433.07
$384.95
$384.95 - $384.95
$384.95

Dixon Fire Fittings
Fire Hose - MSHA Approved Single Jacket Mine Fire Hose - Coupled

Approved by MSHA: Mine Safety and Health Administration for all mine fire protection applications.
Specifications for Variant SKU: SM515W50RAS Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 1.50in
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Male NPSH, 1-1/2in Female NPSH
Features:
  • Outer construction: single jacket, synthetic flame resistant
  • Tube construction: flame resistant lining
  • Proof pressure: 500 PSI at 70°F (21°C)
  • Service test pressure: 250 PSI at 70°F (21°C)
  • Working pressure: 225 PSI at 70°F (21°C)
Part Number Size Bowl Size Thread Length Weight
(Lbs.)
Coupled with Female and Male Aluminum Rocker Lug Expansion Ring Couplings
SM515W50RAF 1-1/2" 1-13/16" Female x Male NST (NH) 50 ft 13.2000
SM515W50RAS 1-1/2" 1-13/16" Female x Male NPSH 50 ft 14.9500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
