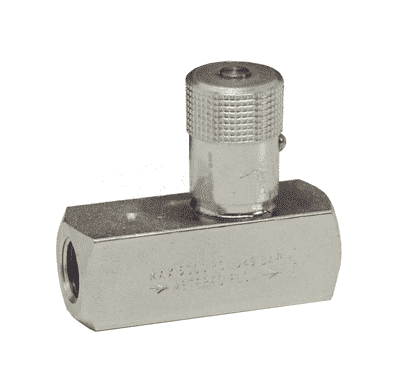

SPF800 Dixon 1/2" Female NPTF Zinc Plated Steel Series PF Flow Control Valve with a Dichromate Seal

SPF800 Dixon Valve 1/2" Female NPTF Zinc Plated Steel Series PF Flow Control Valve with a Dichromate Seal

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Steel Flow Control Valves - Series PF - Female NPTF - Zinc Plated Steel with a Dichromate Seal
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: SPF800 Dixon
Shape (Orientation): Straight
Material(s): Zink-Plated Steel
Seal Material(s): Dichromate
Application:
  • Recommended for use in non-shock applications.
Features:
  • Ball type check meters the flow of hydraulic oil in one direction and allows for free flow in the reverse direction.
  • Exclusive color-coded reference scale on the adjusting knob greatly simplifies flow setting, resetting, adjusting and return to an original flow. A simple set screw locks the valve on any desired setting.
  • Maximum operating pressure:
    • 5000 PSI at 70 deg. F
    • 5 PSI Cracking Pressure
Part Number Female NPTF Max Operating Pressure Pressure Rating Weight (Lbs.)
SPF400 1/4" 5000 PSI 5 PSI Cracking 0.4900
SFC600 3/8" 5000 PSI 5 PSI Cracking 0.7900
SPF800 1/2" 5000 PSI 5 PSI Cracking 1.5500
