SPHM150 by Kuriyama | SPHM Series | Hose Mender | 1-1/2" Hose Barb x 1-1/2" Hose Barb | Zinc Plated Steel

Name: SPHM150 by Kuriyama | SPHM Series | Hose Mender | 1-1/2" Hose Barb x 1-1/2" Hose Barb | Zinc Plated Steel
Brand: Kuriyama
SKU: SPHM150 Kuriyama
Price: 4.06 USD
Availability: InStock

Save $5.77

$9.83

$9.83 - $9.83

$9.83

$4.06

$4.06 - $4.06

$4.06

Kuriyama of America Inc.

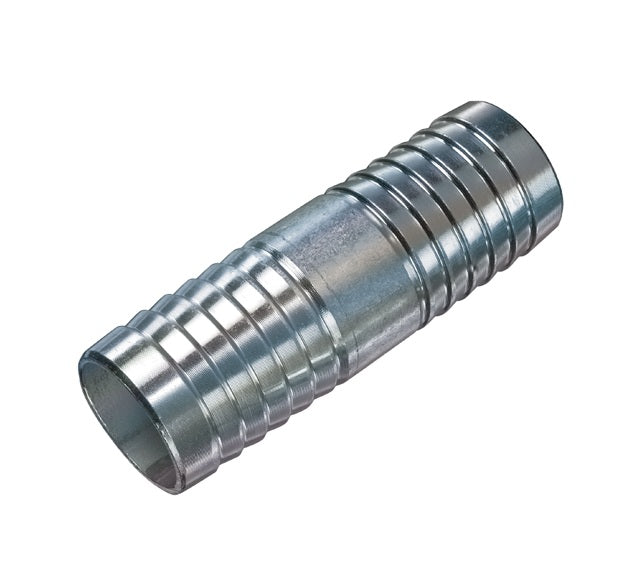

Hose Mender | SPHM Series | Hose Barb x Hose Barb | Zinc Plated Steel

Versatile hose connectors designed to connect two hoses together.

Frequently used in low pressure suction and discharge applications.

Specifications for Variant SKU: SPHM150 Kuriyama
Series:	SPHM Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Hose Barb, Some Ends Match
Material(s):	Zinc Plated Steel
Applicable Specs & Approvals:	ASTM A53 Grade B

What are the Features?

Versatile hose connectors designed to connect two hoses together.
Frequently used in low pressure suction and discharge applications.
Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

Zinc Plated Steel - Complies with ASTM A53 Grade B welded pipe.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
SPHM050	1/2"	250 PSI	0.10 lbs
SPHM062	5/8"	200 PSI	0.10 lbs
SPHM075	3/4"	200 PSI	0.20 lbs
SPHM100	1"	150 PSI	0.30 lbs
SPHM125	1-1/4"	150 PSI	0.50 lbs
SPHM150	1-1/2"	125 PSI	0.60 lbs
SPHM200	2"	75 PSI	0.80 lbs
SPHM250	2-1/2"	75 PSI	1.70 lbs
SPHM300	3"	50 PSI	2.40 lbs
SPHM400	4"	50 PSI	2.90 lbs
SPHM600	6"	25 PSI	13.20 lbs
SPHM800	8"	25 PSI	20.90 lbs
SPHM1000	10"	25 PSI	28.63 lbs
SPHM1200	12"	25 PSI	48.46 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
