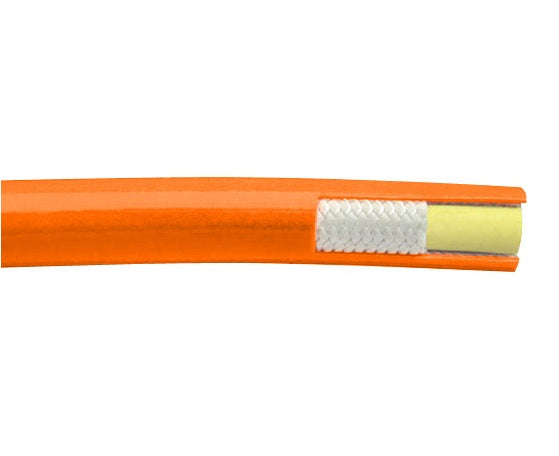

SPOR-MM16X500 Piranha® by Kuriyama | SPOR Series | Sewer Cleaning Hose Assembly | 2500 PSI | 1" ID | 1.46" OD | 1" Male NPTF x 1" Male NPTF | Orange | 500ft Length

Save $634.11

$2,818.24

$2,818.24 - $2,818.24

$2,818.24

$2,184.13

$2,184.13 - $2,184.13

$2,184.13

Kuriyama
Piranha® | SPOR Series | Sewer Cleaning Hose Assembly | 2500 PSI | Orange Cover

For high pressure sewer cleaning in commercial, industrial and residential environments.

Made in the USA.

Specifications for Variant SKU: SPOR-MM16X500 Kuriyama
Brand:	Piranha
Series:	SPOR Series
Hose Color(s):	Orange
Internal Diameter:	1in
Outer Diameter:	1.46in
Tubing Construction:	Polyolefin
Cover Construction:	Polyurethane
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPTF, 1in Male NPTF, Some Ends Match

SPECIFICATIONS

Other Features:
Applications:	High Pressure Sewer Cleaning - Applications for commercial, industrial and residential. Tight Pipe Bends - Slick, Slither® cover affords an easier handling hose to get the job done.
Tube:	Yellow polyolefin.	Reinforcement:	Single high tensile synthetic fiber braid.
Cover:	Abrasion resistant orange polyether-urethane.	Service Temperature Range:	-40°F (-40°C) to +150°F (+66°C)
Specifications:	-
Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions. Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha Hose Product. Polyolefin - Provides maximum resistance to hydrolysis. High Tensile Synthetic Fiber Braids - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption. Abrasion Resistant Polyurethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance. End Fittings - Hoses are assembled Male x Male NPTF threads.

Part Number	ID		OD		Max. Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
Part Number	(in)	(mm)	(in)	(mm)	(psi)	(bar)	(psi)	(bar)	(in)	(mm)	(ft)	(lbs/ft)
SPOR-MM12X400	3/4"	19.1mm	1.18"	30.0mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	5.00"	127.0mm	400ft	0.28lbs
SPOR-MM12X500	3/4"	19.1mm	1.18"	30.0mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	5.00"	127.0mm	500ft	0.28lbs
SPOR-MM12X600	3/4"	19.1mm	1.18"	30.0mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	5.00"	127.0mm	600ft	0.28lbs
SPOR-MM12X800	3/4"	19.1mm	1.18"	30.0mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	5.00"	127.0mm	800ft	0.28lbs

SPOR-MM16X100	1"	25.4mm	1.46"	37.1mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	6.00"	152.4mm	100ft	0.40lbs
SPOR-MM16X200	1"	25.4mm	1.46"	37.1mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	6.00"	152.4mm	200ft	0.40lbs
SPOR-MM16X300	1"	25.4mm	1.46"	37.1mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	6.00"	152.4mm	300ft	0.40lbs
SPOR-MM16X400	1"	25.4mm	1.46"	37.1mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	6.00"	152.4mm	400ft	0.40lbs
SPOR-MM16X500	1"	25.4mm	1.46"	37.1mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	6.00"	152.4mm	500ft	0.40lbs
SPOR-MM16X600	1"	25.4mm	1.46"	37.1mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	6.00"	152.4mm	600ft	0.40lbs
SPOR-MM16X700	1"	25.4mm	1.46"	37.1mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	6.00"	152.4mm	700ft	0.40lbs
SPOR-MM16X1000	1"	25.4mm	1.46"	37.1mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	6.00"	152.4mm	1000ft	0.40lbs

SPOR-MM20X400	1-1/4"	32.0mm	1.80"	45.7mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	8.00"	203.2mm	400ft	0.59lbs
SPOR-MM20X500	1-1/4"	32.0mm	1.80"	45.7mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	8.00"	203.2mm	500ft	0.59lbs
SPOR-MM20X600	1-1/4"	32.0mm	1.80"	45.7mm	2500 PSI	172.4 bar	6250 PSI	430.9 bar	8.00"	203.2mm	600ft	0.59lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
