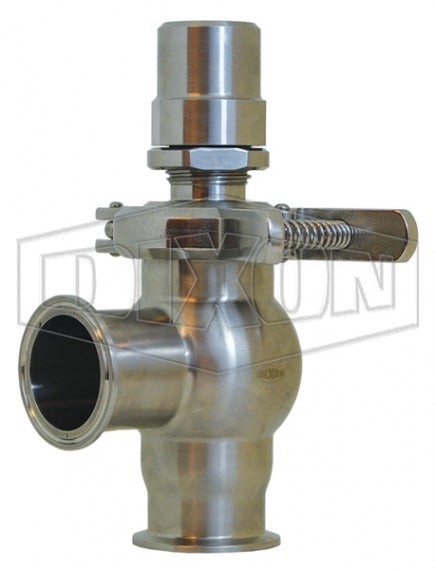

SPR-LCE1A200 Dixon Valve 2" Sanitary Pressure Relief Valve - L Style - Clamp x Clamp - Set Pressure Range: 10-50 PSI - EPDM Seat - 316 Stainless Steel

SPR-LCE1A200 Dixon Valve 2" Sanitary Pressure Relief Valve - L Style - Clamp x Clamp - Set Pressure Range: 10-50 PSI - EPDM Seat - 316 Stainless Steel

Save $736.69 Save $736.69
$1,841.73
$1,841.73 - $1,841.73
$1,841.73
$1,105.04
$1,105.04 - $1,105.04
$1,105.04

Dixon Sanitary Fittings
Sanitary Pressure Relief Valve - L Style - Clamp x Clamp - 316 Stainless Steel

Suitable for liquids and gas.
Specifications for Variant SKU: SPR-LCE1A200 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2in Sanitary Clamp End, 2in Sanitary Clamp End, Some Ends Match
Material(s): 316 Stainless Steel, 304 Stainless Steel
Seal Material(s): EPDM
Features:
  • Valve opens when the set pressure is reached to prevent excess pressure in piping or systems.
  • Valve body made from solid bar.
  • Patented squeeze clamp.
  • Low spare part cost.
  • Clamp End connection.
  • Actuation: Manual.
  • Maximum Operating Temperature [Sterilization]: 300°F (148°C) (Maximum 20 min)
Materials:
  • Wetted Product Surfaces: 32Ra
  • Product Contact: 316L Stainless Steel
  • Non product contact: 304 Stainless Steel
Specifications:
  • 3-A Certified
Spring Set Maximum Set Pressure (PSI) PSI / Turn Turns to Max Set Pressure
1 50 PSI 11 4-1/2
2 100 PSI 21 4-3/4
3 300 PSI 105 2-3/4
Part Number Size Set Pressure Range Seat Dimensions
A B
SPR-LCE1A150 1-1/2" 10-50 PSI EPDM 2.69" 9.18"
SPR-LCE1A200 2" 10-50 PSI EPDM 3.04" 9.84"
SPR-LCE2A150 1-1/2" 0-100 PSI EPDM 2.69" 9.18"
SPR-LCE2A200 2" 0-100 PSI EPDM 3.04" 9.84"
SPR-LCE3A150 1-1/2" 0-300 PSI EPDM 2.69" 9.18"
SPR-LCE3A200 2" 0-300 PSI EPDM 3.04" 9.84"
SPR-LCV1A150 1-1/2" 10-50 PSI FKM 2.69" 9.18"
SPR-LCV1A200 2" 10-50 PSI FKM 3.04" 9.84"
SPR-LCV2A150 1-1/2" 0-100 PSI FKM 2.69" 9.18"
SPR-LCV2A200 2" 0-100 PSI FKM 3.04" 9.84"
SPR-LCV3A150 1-1/2" 0-300 PSI FKM 2.69" 9.18"
SPR-LCV3A200 2" 0-300 PSI FKM 3.04" 9.84"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
