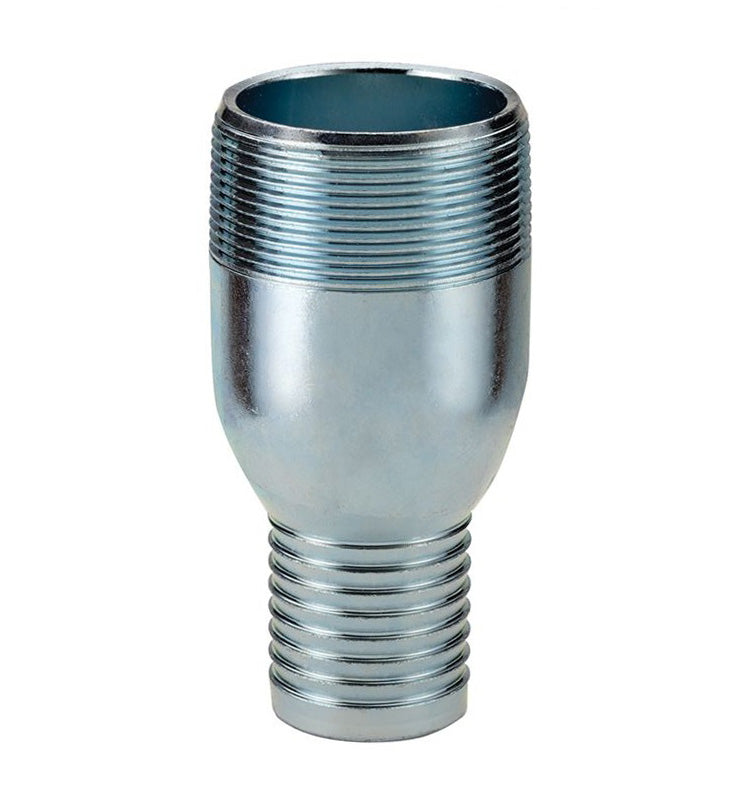

SPRN-125150 by Kuriyama | SPRN Series | Combination Hose Nipple Reducer | 1-1/2" Male NPT x 1-1/4" Hose Barb | Zinc Plated Steel

SPRN-125150 by Kuriyama | SPRN Series | Combination Hose Nipple Reducer | 1-1/2" Male NPT x 1-1/4" Hose Barb | Zinc Plated Steel

Save $6.21 Save $6.21
$12.01
$12.01 - $12.01
$12.01
$5.80
$5.80 - $5.80
$5.80

Kuriyama of America Inc.
Combination Hose Nipple Reducer | SPRN Series | Male NPT x Hose Barb | Zinc Plated Steel

Versatile hose connectors designed to connect hose and pipes of the same thread size.

Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
Specifications for Variant SKU: SPRN-125150 Kuriyama
Series: SPRN Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPT, 1-1/4in Hose Barb
Material(s): Zinc Plated Steel
Applicable Specs & Approvals: ASTM A53 Grade B

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes of the same thread size.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • Zinc Plated Steel - Complies with ASTM A53 B welded pipe.
Reducer / Jump Sizes
Part Number Male NPT Size
(in)		 Hose Shank Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
SPRN-075100 1" 3/4" 125 PSI 0.35 lbs
SPRN-100075 3/4" 1" 125 PSI 0.19 lbs
SPRN-100125 1-1/4" 1" 125 PSI 0.44 lbs
SPRN-125100 1" 1-1/4" 125 PSI 0.30 lbs
SPRN-125150 1-1/2" 1-1/4" 125 PSI 0.65 lbs
SPRN-150125 1-1/4" 1-1/2" 125 PSI 0.44 lbs
SPRN-150200 2" 1-1/2" 75 PSI 0.88 lbs
SPRN-200150 1-1/2" 2" 75 PSI 0.73 lbs
SPRN-200250 2-1/2" 2" 75 PSI 1.65 lbs
SPRN-250200 2" 2-1/2" 75 PSI 1.40 lbs
SPRN-250300 3" 2-1/2" 75 PSI 1.92 lbs
SPRN-300250 2-1/2" 3" 75 PSI 1.91 lbs
SPRN-300400 4" 3" 75 PSI 2.95 lbs
SPRN-400300 3" 4" 75 PSI 2.91 lbs
Part Number Male NPT Size
(in)		 Hose Shank Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
SPN050 1/2" 1/2" 125 PSI 0.14 lbs
SPN075 3/4" 3/4" 125 PSI 0.22 lbs
SPN100 1" 1" 125 PSI 0.32 lbs
SPN125 1-1/4" 1-1/4" 125 PSI 0.56 lbs
SPN150 1-1/2" 1-1/2" 125 PSI 0.72 lbs
SPN200 2" 2" 75 PSI 1.10 lbs
SPN250 2-1/2" 2-1/2" 75 PSI 1.74 lbs
SPN300 3" 3" 75 PSI 2.18 lbs
SPN400 4" 4" 75 PSI 3.22 lbs
SPN600 6" 6" 75 PSI 12.24 lbs
SPN800 8" 8" 50 PSI 16.44 lbs
SPN1000 10" 10" 50 PSI 21.78 lbs
SPN1200 12" 12" 50 PSI 33.18 lbs
