SPVC-LT-BLUE-2.0-100 by Texcel | SIGMA-LT-BLUE™ Series | FDA PVC Low Temp Suction Hose | 2" Hose ID | 90 PSI | 29 in/Hg Vacuum Rated | Blue | 100ft Length

SPVC-LT-BLUE-2.0-100 by Texcel | SIGMA-LT-BLUE™ Series | FDA PVC Low Temp Suction Hose | 2" Hose ID | 90 PSI | 29 in/Hg Vacuum Rated | Blue | 100ft Length

Save $118.46 Save $118.46
$414.60
$414.60 - $414.60
$414.60
$296.14
$296.14 - $296.14
$296.14

Texcel
SIGMA-LT-BLUE™ Series | FDA PVC Low Temp Suction Hose

Package Quantity: 100 Units

Specifications for Variant SKU: SPVC-LT-BLUE-2.0-100 Texcel | 100 |
Brand: SIGMA
Series: SIGMA-LT-BLUE™ Series
Hose Color(s): Blue
Internal Diameter: 2in
Outer Diameter: 2.36in
Tubing Construction: PVC
Special Properties: Outer Helix Protection
Technical Data:

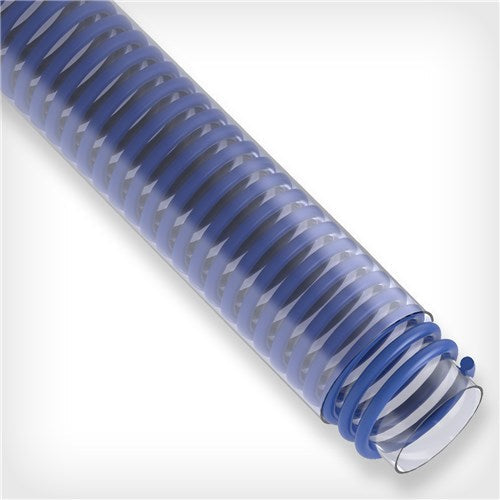

Description: Heavy-duty, low-temp, blue, food-grade suction hose for wet material applications. Hose complies with applicable FDA and 3A requirements as well as USDA for use in dairy plants. Clear PVC and blue helix construction allows for visual confirmation of material flow. Smooth bore eliminates material build up. Hose remains flexible in sub-zero temperatures. Construction: Clear, flexible FDA PVC with smooth tube and cover, flexible in extreme cold.
Safety Factor: 3:1 Temperature: -40°F to +150°F
Branding: TEXCEL® SIGMA-LT-BLUE™ - LOW TEMP BLUE FOOD GRADE SUCTION HOSE --LOT Safety Note: It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features: FDA, USDA and 3A compliant. Phthalate Free
Part Number Hose ID Hose OD Std. Length Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./Ft.
SPVC-LT-BLUE-.75-100 3/4" 1.01" 100' 90 psi 29 2.5" 0.19 lbs
SPVC-LT-BLUE-1.0-100 1" 1.25" 100' 90 psi 29 3" 0.22 lbs
SPVC-LT-BLUE-1.25-100 1-1/4" 1.56" 100' 90 psi 29 4" 0.36 lbs
SPVC-LT-BLUE-1.5-100 1-1/2" 1.77" 100' 90 psi 29 5" 0.45 lbs
SPVC-LT-BLUE-2.0-100 2" 2.36" 100' 90 psi 29 7" 0.62 lbs
SPVC-LT-BLUE-2.5-100 2-1/2" 2.90" 100' 70 psi 29 8" 0.87 lbs
SPVC-LT-BLUE-3.0-100 3" 3.42" 100' 60 psi 29 12" 1.29 lbs
SPVC-LT-BLUE-4.0-100 4" 4.50" 100' 55 psi 29 15" 1.83 lbs
SPVC-LT-BLUE-5.0-100 5" 5.59" 100' 45 psi 28 25" 2.42 lbs
SPVC-LT-BLUE-6.0-100 6" 6.70" 100' 40 psi 28 30" 3.36 lbs
SPVC-LT-BLUE-8.0-100 8" N/A 100' N/A N/A N/A N/A
