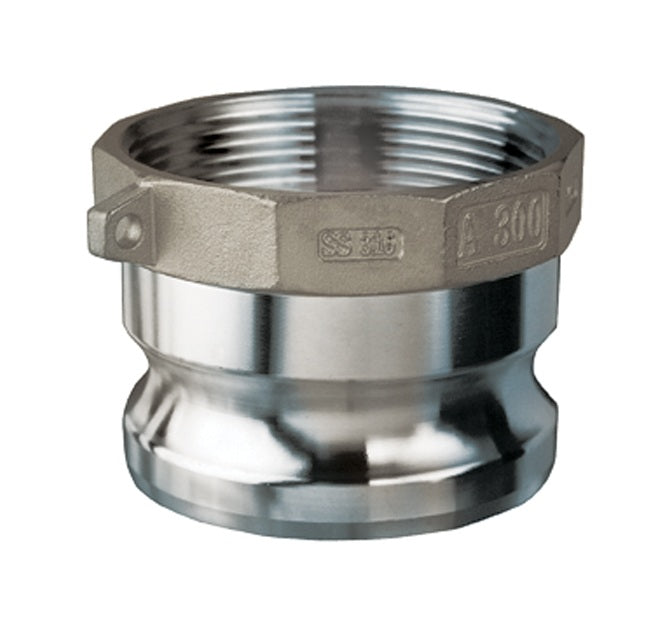

SS-A500 by Kuriyama | SS-A Series | Part A | Cam & Groove Adapter | 5" Adapter x 5" Female NPT | 316 Stainless Steel

SS-A500 by Kuriyama | SS-A Series | Part A | Cam & Groove Adapter | 5" Adapter x 5" Female NPT | 316 Stainless Steel

Save $32.80 Save $32.80
$227.15
$227.15 - $227.15
$227.15
$194.35
$194.35 - $194.35
$194.35

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SS-A Series | Part A | Adapter x Female NPT | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS-A500 Kuriyama
Series: SS-A Series
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 5in Male Cam & Groove, 5in Female NPT
Material(s): 316 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS-A050 1/2" 250 PSI A666/316 0.20 lbs
SS-A075 3/4" 250 PSI A666/316 0.26 lbs
SS-A100 1" 250 PSI A666/316 0.34 lbs
SS-A125 1-1/4" 250 PSI A666/316 0.62 lbs
SS-A150 1-1/2" 250 PSI A666/316 0.80 lbs
SS-A200 2" 250 PSI A666/316 1.12 lbs
SS-A250 2-1/2" 150 PSI A666/316 1.76 lbs
SS-A300 3" 150 PSI A666/316 2.16 lbs
SS-A400 4" 150 PSI A666/316 2.88 lbs
SS-A500 5" 75 PSI A666/316 4.30 lbs
SS-A600 6" 75 PSI A666/316 6.00 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
