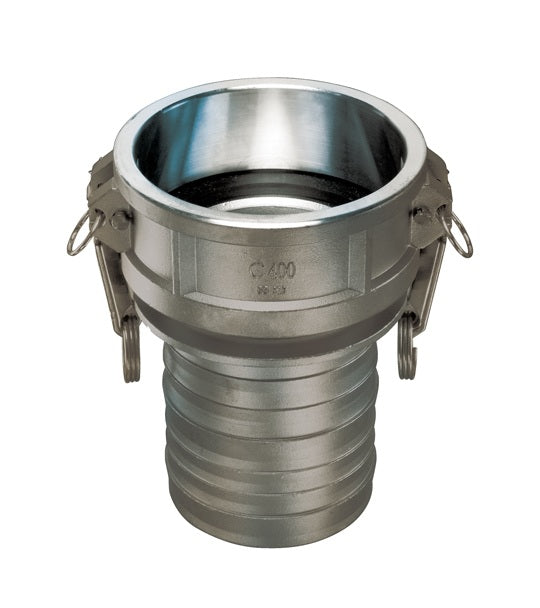

SS-C075 by Kuriyama | SS-C Series | Part C | Cam & Groove Fitting | 3/4" Coupler x 3/4" Hose Barb | 316 Stainless Steel

SS-C075 by Kuriyama | SS-C Series | Part C | Cam & Groove Fitting | 3/4" Coupler x 3/4" Hose Barb | 316 Stainless Steel

Save $8.23 Save $8.23
$25.00
$25.00 - $25.00
$25.00
$16.77
$16.77 - $16.77
$16.77

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | SS-C Series | Part C | Coupler x Hose Barb | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS-C075 Kuriyama
Series: SS-C Series
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 3/4in Female Cam & Groove, 3/4in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Tri-Couple™ design available in 1 1/2", 2", 3", 4" sizes.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Coupler Size
(in)		 Shank Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS-C050 1/2" 1/2" 250 PSI A666/316 0.30 lbs
SS-C075 3/4" 3/4" 250 PSI A666/316 0.46 lbs
SS-C100 1" 1" 250 PSI A666/316 0.74 lbs
SS-C125 1-1/4" 1-1/4" 250 PSI A666/316 1.41 lbs
SS-C150* 1-1/2" 1-1/2" 250 PSI A666/316 1.68 lbs
SS-C200* 2" 2" 250 PSI A666/316 2.30 lbs
SS-C250 2-1/2" 2-1/2" 150 PSI A666/316 3.10 lbs
SS-C300* 3" 3" 150 PSI A666/316 4.12 lbs
SS-C3020 3" 2" 150 PSI A666/316 3.65 lbs
SS-C400* 4" 4" 150 PSI A666/316 6.98 lbs
SS-C500 5" 5" 75 PSI A666/316 10.32 lbs
SS-C600 6" 6" 75 PSI A666/316 14.55 lbs

* Designates Tri-Couple fitting

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
