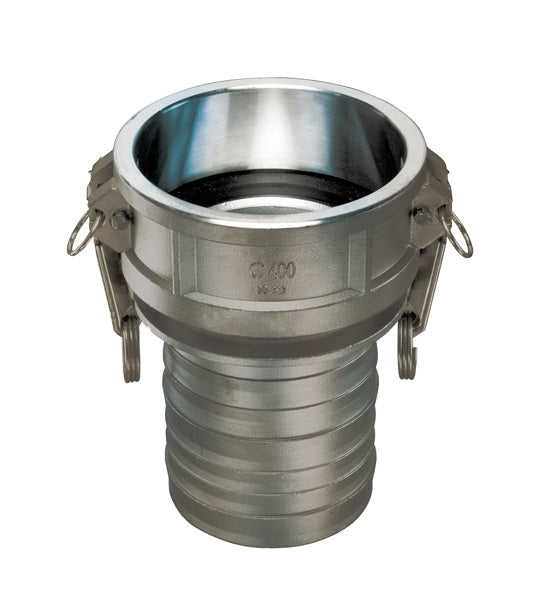

SS-C600 by Kuriyama | SS-C Series | Part C | Cam & Groove Fitting | 6" Coupler x 6" Hose Barb | 316 Stainless Steel

Save $67.00

$447.57

$447.57 - $447.57

$447.57

$380.57

$380.57 - $380.57

$380.57

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | SS-C Series | Part C | Coupler x Hose Barb | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: SS-C600 Kuriyama
Series:	SS-C Series
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	6in Female Cam & Groove, 6in Hose Barb
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Tri-Couple™ design available in 1 1/2", 2", 3", 4" sizes.
Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

ASTM stainless steel alloy.
Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
304 stainless steel handles, handle pins, pull rings, and safety clips.
Buna-N gasket included.

Part Number	Coupler Size (in)	Shank Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
SS-C050	1/2"	1/2"	250 PSI	A666/316	0.30 lbs
SS-C075	3/4"	3/4"	250 PSI	A666/316	0.46 lbs
SS-C100	1"	1"	250 PSI	A666/316	0.74 lbs
SS-C125	1-1/4"	1-1/4"	250 PSI	A666/316	1.41 lbs
SS-C150*	1-1/2"	1-1/2"	250 PSI	A666/316	1.68 lbs
SS-C200*	2"	2"	250 PSI	A666/316	2.30 lbs
SS-C250	2-1/2"	2-1/2"	150 PSI	A666/316	3.10 lbs
SS-C300*	3"	3"	150 PSI	A666/316	4.12 lbs
SS-C3020	3"	2"	150 PSI	A666/316	3.65 lbs
SS-C400*	4"	4"	150 PSI	A666/316	6.98 lbs
SS-C500	5"	5"	75 PSI	A666/316	10.32 lbs
SS-C600	6"	6"	75 PSI	A666/316	14.55 lbs

* Designates Tri-Couple fitting
