SS12DBMBSPP12XMBSPP12-Z-AL by Super Swivel | #51501 | G 3/4-14 Male BSPP x G 3/4-14 Male BSPP | 0.657" Through Hole | Straight | Zinc | AFLAS Seal

SS12DBMBSPP12XMBSPP12-Z-AL by Super Swivel | #51501 | G 3/4-14 Male BSPP x G 3/4-14 Male BSPP | 0.657" Through Hole | Straight | Zinc | AFLAS Seal

Save $44.53 Save $44.53
$111.33
$111.33 - $111.33
$111.33
$66.80
$66.80 - $66.80
$66.80

Super Swivels
BSPP Straight Swivels - Male BSPP X Male BSPP
Specifications for Variant SKU: SS12DBMBSPP12XMBSPP12-Z-AL Super Swivels #51501
Shape (Orientation): Straight
Ends Configuration: 3/4in Male BSPP, 3/4in Male BSPP
Material(s): Zinc
Seal Material(s): AFLAS
Features:
  • BSPP Swivels (British Standard Parallel Pipe) are most common in the UK, Europe, Asia, Australia, New Zealand and South Africa.
  • A parallel thread fitting uses a bonded seal ring.
  • This bonded ring seal is sandwiched in-between a shoulder on the male fitting and the face of the female fitting and is squeezed in place with no thread sealant required.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • BSPP sizes range from 1/4" through 11/2" body thread with multiple fittings and seal configurations including Inline and 90° Swivels.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)

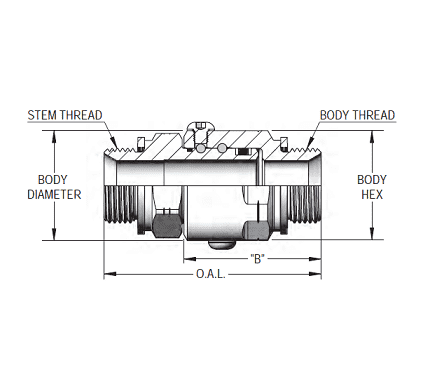

Part Number Material Seal Overall
Length		 Dim.
B		 Stem.
Thread		 Body
Thread		 Stem
Hex		 Body Dia. Body
Hex		 Max
Pressure		 Through
Hole
SS4MBSPP4XMBSPP4-Z-V Zinc Viton 2.600"
66mm		 1.650"
41.9mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.812"
20.6mm		 HEX 1.000"
25.4mm		 5,000 PSI
345 BAR		 0.250"
6.4mm
SS4MBSPP4XMBSPP4-Z-AL Zinc AFLAS 2.600"
66mm		 1.650"
41.9mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.812"
20.6mm		 HEX 1.000"
25.4mm		 5,000 PSI
345 BAR		 0.250"
6.4mm
SS4MBSPP4XMBSPP4-Z-ETP Zinc Viton Extreme 2.600"
66mm		 1.650"
41.9mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.812"
20.6mm		 HEX 1.000"
25.4mm		 5,000 PSI
345 BAR		 0.250"
6.4mm
SS4MBSPP4XMBSPP4-NI-V Electroless Nickel Viton 2.600"
66mm		 1.650"
41.9mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.812"
20.6mm		 HEX 1.000"
25.4mm		 5,000 PSI
345 BAR		 0.250"
6.4mm
SS4MBSPP4XMBSPP4-NI-AL Electroless Nickel AFLAS 2.600"
66mm		 1.650"
41.9mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.812"
20.6mm		 HEX 1.000"
25.4mm		 5,000 PSI
345 BAR		 0.250"
6.4mm
SS4MBSPP4XMBSPP4-NI-ETP Electroless Nickel Viton Extreme 2.600"
66mm		 1.650"
41.9mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.812"
20.6mm		 HEX 1.000"
25.4mm		 5,000 PSI
345 BAR		 0.250"
6.4mm
SS6MBSPP6XMBSPP6-Z-V Zinc Viton 2.670"
67.8mm		 1.720"
43.7mm		 G 3/8-19 BSPP G 3/8-19 BSPP 1.062"
27mm		 1.290"
32.8mm		 1.187"
30.1mm		 5,000 PSI
345 BAR		 0.313"
8mm
SS6MBSPP6XMBSPP6-Z-AL Zinc AFLAS 2.670"
67.8mm		 1.720"
43.7mm		 G 3/8-19 BSPP G 3/8-19 BSPP 1.062"
27mm		 1.290"
32.8mm		 1.187"
30.1mm		 5,000 PSI
345 BAR		 0.313"
8mm
SS6MBSPP6XMBSPP6-Z-ETP Zinc Viton Extreme 2.670"
67.8mm		 1.720"
43.7mm		 G 3/8-19 BSPP G 3/8-19 BSPP 1.062"
27mm		 1.290"
32.8mm		 1.187"
30.1mm		 5,000 PSI
345 BAR		 0.313"
8mm
SS6MBSPP6XMBSPP6-NI-V Electroless Nickel Viton 2.670"
67.8mm		 1.720"
43.7mm		 G 3/8-19 BSPP G 3/8-19 BSPP 1.062"
27mm		 1.290"
32.8mm		 1.187"
30.1mm		 5,000 PSI
345 BAR		 0.313"
8mm
SS6MBSPP6XMBSPP6-NI-AL Electroless Nickel AFLAS 2.670"
67.8mm		 1.720"
43.7mm		 G 3/8-19 BSPP G 3/8-19 BSPP 1.062"
27mm		 1.290"
32.8mm		 1.187"
30.1mm		 5,000 PSI
345 BAR		 0.313"
8mm
SS6MBSPP6XMBSPP6-NI-ETP Electroless Nickel Viton Extreme 2.670"
67.8mm		 1.720"
43.7mm		 G 3/8-19 BSPP G 3/8-19 BSPP 1.062"
27mm		 1.290"
32.8mm		 1.187"
30.1mm		 5,000 PSI
345 BAR		 0.313"
8mm
SS8DBMBSPP8XMBSPP8-Z-V Zinc Viton 3.060"
77.7mm		 2.035"
51.7mm		 G 1/2-14 BSPP G 1/2-14 BSPP 1.125"
28.6mm		 1.480"
37.6mm		 1.375"
34.9mm		 5,000 PSI
345 BAR		 0.437"
11.1mm
SS8DBMBSPP8XMBSPP8-Z-AL Zinc AFLAS 3.060"
77.7mm		 2.035"
51.7mm		 G 1/2-14 BSPP G 1/2-14 BSPP 1.125"
28.6mm		 1.480"
37.6mm		 1.375"
34.9mm		 5,000 PSI
345 BAR		 0.437"
11.1mm
SS8DBMBSPP8XMBSPP8-Z-ETP Zinc Viton Extreme 3.060"
77.7mm		 2.035"
51.7mm		 G 1/2-14 BSPP G 1/2-14 BSPP 1.125"
28.6mm		 1.480"
37.6mm		 1.375"
34.9mm		 5,000 PSI
345 BAR		 0.437"
11.1mm
SS8DBMBSPP8XMBSPP8-NI-V Electroless Nickel Viton 3.060"
77.7mm		 2.035"
51.7mm		 G 1/2-14 BSPP G 1/2-14 BSPP 1.125"
28.6mm		 1.480"
37.6mm		 1.375"
34.9mm		 5,000 PSI
345 BAR		 0.437"
11.1mm
SS8DBMBSPP8XMBSPP8-NI-AL Electroless Nickel AFLAS 3.060"
77.7mm		 2.035"
51.7mm		 G 1/2-14 BSPP G 1/2-14 BSPP 1.125"
28.6mm		 1.480"
37.6mm		 1.375"
34.9mm		 5,000 PSI
345 BAR		 0.437"
11.1mm
SS8DBMBSPP8XMBSPP8-NI-ETP Electroless Nickel Viton Extreme 3.060"
77.7mm		 2.035"
51.7mm		 G 1/2-14 BSPP G 1/2-14 BSPP 1.125"
28.6mm		 1.480"
37.6mm		 1.375"
34.9mm		 5,000 PSI
345 BAR		 0.437"
11.1mm
SS12DBMBSPP12XMBSPP12-Z-V Zinc Viton 3.270"
83mm		 2.070"
52.6mm		 G 3/4-14 BSPP G 3/4-14 BSPP 1.312"
33.3mm		 1.675"
42.5mm		 1.562"
39.7mm		 5,000 PSI
345 BAR		 0.657"
16.7mm
SS12DBMBSPP12XMBSPP12-Z-AL Zinc AFLAS 3.270"
83mm		 2.070"
52.6mm		 G 3/4-14 BSPP G 3/4-14 BSPP 1.312"
33.3mm		 1.675"
42.5mm		 1.562"
39.7mm		 5,000 PSI
345 BAR		 0.657"
16.7mm
SS12DBMBSPP12XMBSPP12-Z-ETP Zinc Viton Extreme 3.270"
83mm		 2.070"
52.6mm		 G 3/4-14 BSPP G 3/4-14 BSPP 1.312"
33.3mm		 1.675"
42.5mm		 1.562"
39.7mm		 5,000 PSI
345 BAR		 0.657"
16.7mm
SS12DBMBSPP12XMBSPP12-NI-V Electroless Nickel Viton 3.270"
83mm		 2.070"
52.6mm		 G 3/4-14 BSPP G 3/4-14 BSPP 1.312"
33.3mm		 1.675"
42.5mm		 1.562"
39.7mm		 5,000 PSI
345 BAR		 0.657"
16.7mm
SS12DBMBSPP12XMBSPP12-NI-AL Electroless Nickel AFLAS 3.270"
83mm		 2.070"
52.6mm		 G 3/4-14 BSPP G 3/4-14 BSPP 1.312"
33.3mm		 1.675"
42.5mm		 1.562"
39.7mm		 5,000 PSI
345 BAR		 0.657"
16.7mm
SS12DBMBSPP12XMBSPP12-NI-ETP Electroless Nickel Viton Extreme 3.270"
83mm		 2.070"
52.6mm		 G 3/4-14 BSPP G 3/4-14 BSPP 1.312"
33.3mm		 1.675"
42.5mm		 1.562"
39.7mm		 5,000 PSI
345 BAR		 0.657"
16.7mm
SS16DBMBSPP16XMBSPP16-Z-V Zinc Viton 3.800"
96.5mm		 2.400"
61mm		 G 1-11 BSPP G 1-11 BSPP 1.625"
41.3mm		 1.917"
48.7mm		 1.812"
46mm		 4500 PSI
310 BAR		 0.875"
22.2mm
SS16DBMBSPP16XMBSPP16-Z-AL Zinc AFLAS 3.800"
96.5mm		 2.400"
61mm		 G 1-11 BSPP G 1-11 BSPP 1.625"
41.3mm		 1.917"
48.7mm		 1.812"
46mm		 4500 PSI
310 BAR		 0.875"
22.2mm
SS16DBMBSPP16XMBSPP16-Z-ETP Zinc Viton Extreme 3.800"
96.5mm		 2.400"
61mm		 G 1-11 BSPP G 1-11 BSPP 1.625"
41.3mm		 1.917"
48.7mm		 1.812"
46mm		 4500 PSI
310 BAR		 0.875"
22.2mm
SS16DBMBSPP16XMBSPP16-NI-V Electroless Nickel Viton 3.800"
96.5mm		 2.400"
61mm		 G 1-11 BSPP G 1-11 BSPP 1.625"
41.3mm		 1.917"
48.7mm		 1.812"
46mm		 4500 PSI
310 BAR		 0.875"
22.2mm
SS16DBMBSPP16XMBSPP16-NI-AL Electroless Nickel AFLAS 3.800"
96.5mm		 2.400"
61mm		 G 1-11 BSPP G 1-11 BSPP 1.625"
41.3mm		 1.917"
48.7mm		 1.812"
46mm		 4500 PSI
310 BAR		 0.875"
22.2mm
SS16DBMBSPP16XMBSPP16-NI-ETP Electroless Nickel Viton Extreme 3.800"
96.5mm		 2.400"
61mm		 G 1-11 BSPP G 1-11 BSPP 1.625"
41.3mm		 1.917"
48.7mm		 1.812"
46mm		 4500 PSI
310 BAR		 0.875"
22.2mm
SS20MBSPP20XMBSPP20-Z-V Zinc Viton 4.190"
106.4mm		 2.580"
65.5mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 2.000"
50.8mm		 2.357"
59.9mm		 2.187"
55.5mm		 4,000 PSI
275 BAR		 1.125"
28.6mm
SS20MBSPP20XMBSPP20-Z-AL Zinc AFLAS 4.190"
106.4mm		 2.580"
65.5mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 2.000"
50.8mm		 2.357"
59.9mm		 2.187"
55.5mm		 4,000 PSI
275 BAR		 1.125"
28.6mm
SS20MBSPP20XMBSPP20-Z-ETP Zinc Viton Extreme 4.190"
106.4mm		 2.580"
65.5mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 2.000"
50.8mm		 2.357"
59.9mm		 2.187"
55.5mm		 4,000 PSI
275 BAR		 1.125"
28.6mm
SS20MBSPP20XMBSPP20-NI-V Electroless Nickel Viton 4.190"
106.4mm		 2.580"
65.5mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 2.000"
50.8mm		 2.357"
59.9mm		 2.187"
55.5mm		 4,000 PSI
275 BAR		 1.125"
28.6mm
SS20MBSPP20XMBSPP20-NI-AL Electroless Nickel AFLAS 4.190"
106.4mm		 2.580"
65.5mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 2.000"
50.8mm		 2.357"
59.9mm		 2.187"
55.5mm		 4,000 PSI
275 BAR		 1.125"
28.6mm
SS20MBSPP20XMBSPP20-NI-ETP Electroless Nickel Viton Extreme 4.190"
106.4mm		 2.580"
65.5mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 2.000"
50.8mm		 2.357"
59.9mm		 2.187"
55.5mm		 4,000 PSI
275 BAR		 1.125"
28.6mm
SS24MBSPP24XMBSPP24-NI-V Electroless Nickel Viton 4.930"
125.2mm		 3.130"
79.5mm		 G 1-1/2-11 BSPP G 1-1/2-11 BSPP 2.250"
57.2mm		 2.557"
64.9mm		 2.375"
60.3mm		 4,000 PSI
275 BAR		 1.312"
33.3mm
SS24MBSPP24XMBSPP24-NI-AL Electroless Nickel AFLAS 4.930"
125.2mm		 3.130"
79.5mm		 G 1-1/2-11 BSPP G 1-1/2-11 BSPP 2.250"
57.2mm		 2.557"
64.9mm		 2.375"
60.3mm		 4,000 PSI
275 BAR		 1.312"
33.3mm
SS24MBSPP24XMBSPP24-NI-ETP Electroless Nickel Viton Extreme 4.930"
125.2mm		 3.130"
79.5mm		 G 1-1/2-11 BSPP G 1-1/2-11 BSPP 2.250"
57.2mm		 2.557"
64.9mm		 2.375"
60.3mm		 4,000 PSI
275 BAR		 1.312"
33.3mm
Super Swivels

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
