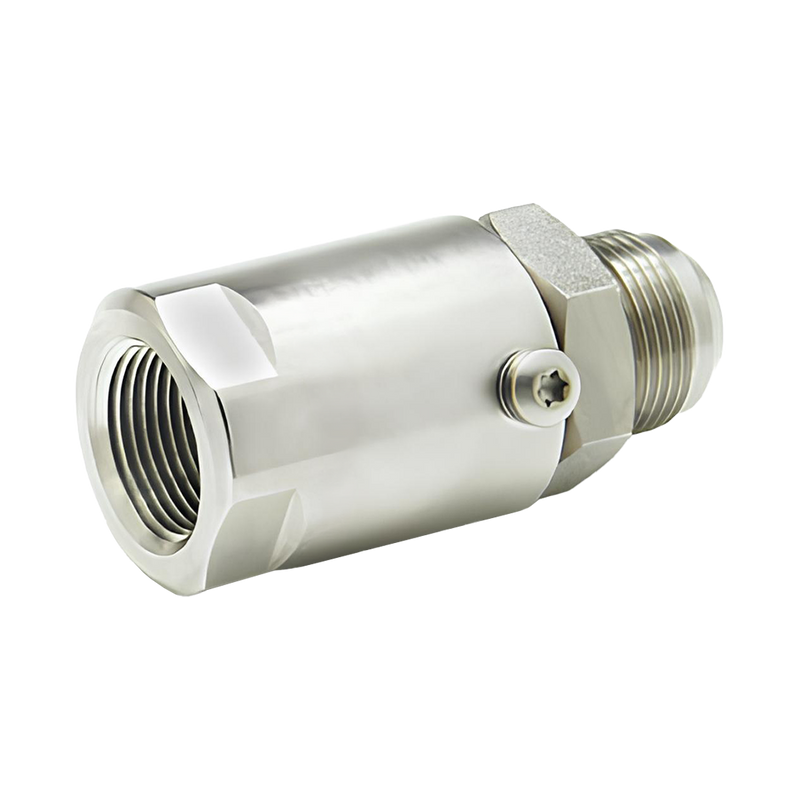

SS12MJ12XFP75-Ni-AL (1144-Ni-AL) Super Swivel Straight 1-1/16-12 Male 37 deg. JIC x 3/4-14 Female Pipe NPTF - 0.609" Through Hole - Electroless Nickel - AFLAS Seal

  • $52.91
Features:
  • Inline Swivels rotating joints provide for minimal friction allowing free movement of hoses and piping in fluid conducting power systems.
  • The compact design fits in tight areas.
  • Super Swivels one piece barrel and stem with integrated ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • This pass-through inline design is the most standard configuration in live swivels.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
  • 304 Stainless Steel (304) is recommended for low pressure corrosive environments.
  • 440C Stainless Steel (440) is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (PFA) PFA Teflon® - High resistance to many individual chemicals where Teflon seals are required. (1,500 max psi) (-15 deg. F to 400 deg. F)
  • (ETP) Extreme® Viton - High resistance to many individual chemicals. (-6ºF to 437ºF)
Part Number Material Seal Overall
Length
Dim.
B
Stem
Thread
Body
Thread
Stem Hex Diameter Wrench Max
PSIG
Through
Hole
SS4MJ6XFP25-Z-V Zinc Viton 2.670" 1.720" 9/16-18 UN 1/4-18 NPTF 0.625" 0.992" 0.875" 5000 PSIG 0.250"
SS4MJ6XFP25-Z-AL Zinc AFLAS
SS4MJ6XFP25-Z-PFA Zinc Teflon
SS4MJ6XFP25-Z-ETP Zinc Extreme Viton®
SS4MJ6XFP25-Ni-V Electroless Nickel Viton
SS4MJ6XFP25-Ni-AL Electroless Nickel AFLAS
SS4MJ6XFP25-Ni-PFA Electroless Nickel Teflon
SS4MJ6XFP25-Ni-ETP Electroless Nickel Extreme Viton®
SS8MJ8XFP38-Z-V Zinc Viton 2.655" 1.575" 3/4-16 UN 3/8-18 NPTF 1.000" 1.292" 1.125" 5000 PSIG 0.406"
SS8MJ8XFP38-Z-AL Zinc AFLAS
SS8MJ8XFP38-Z-PFA Zinc Teflon
SS8MJ8XFP38-Z-ETP Zinc Extreme Viton®
SS8MJ8XFP38-Ni-V Electroless Nickel Viton
SS8MJ8XFP38-Ni-AL Electroless Nickel AFLAS
SS8MJ8XFP38-Ni-PFA Electroless Nickel Teflon
SS8MJ8XFP38-Ni-ETP Electroless Nickel Extreme Viton®
SS8MJ8XFP50-Z-V Zinc Viton 2.740" 1.650" 3/4-16 UN 1/2-14 NPTF 1.000" 1.480" 1.250" 5000 PSIG 0.406"
SS8MJ8XFP50-Z-AL Zinc AFLAS
SS8MJ8XFP50-Z-PFA Zinc Teflon
SS8MJ8XFP50-Z-ETP Zinc Extreme Viton®
SS8MJ8XFP50-Ni-V Electroless Nickel Viton
SS8MJ8XFP50-Ni-AL Electroless Nickel AFLAS
SS8MJ8XFP50-Ni-PFA Electroless Nickel Teflon
SS8MJ8XFP50-Ni-ETP Electroless Nickel Extreme Viton®
SS8MJ10XFP50-Z-V Zinc Viton 2.840" 1.650" 7/8-14 UN 1/2-14 NPTF 1.000" 1.480" 1.250" 5000 PSIG 0.484"
SS8MJ10XFP50-Z-AL Zinc AFLAS
SS8MJ10XFP50-Z-PFA Zinc Teflon
SS8MJ10XFP50-Z-ETP Zinc Extreme Viton®
SS8MJ10XFP50-Ni-V Electroless Nickel Viton
SS8MJ10XFP50-Ni-AL Electroless Nickel AFLAS
SS8MJ10XFP50-Ni-PFA Electroless Nickel Teflon
SS8MJ10XFP50-Ni-ETP Electroless Nickel Extreme Viton®
SS12MJ12XFP75-Z-V Zinc Viton 3.210" 1.850" 1-1/16-12 UN 3/4-14 NPTF 1.125" 1.675" 1.500" 4500 PSIG 0.609"
SS12MJ12XFP75-Z-AL Zinc AFLAS
SS12MJ12XFP75-Z-PFA Zinc Teflon
SS12MJ12XFP75-Z-ETP Zinc Extreme Viton®
SS12MJ12XFP75-Ni-V Electroless Nickel Viton
SS12MJ12XFP75-Ni-AL Electroless Nickel AFLAS
SS12MJ12XFP75-Ni-PFA Electroless Nickel Teflon
SS12MJ12XFP75-Ni-ETP Electroless Nickel Extreme Viton®
SS16MJ16XFP100-Z-V Zinc Viton 3.700" 2.225" 1-5/16-12 UN 1-11-1/2 NPTF 1.375" 1.917" 1.750" 4000 PSIG 0.844"
SS16MJ16XFP100-Z-AL Zinc AFLAS
SS16MJ16XFP100-Z-PFA Zinc Teflon
SS16MJ16XFP100-Z-ETP Zinc Extreme Viton®
SS16MJ16XFP100-Ni-V Electroless Nickel Viton
SS16MJ16XFP100-Ni-AL Electroless Nickel AFLAS
SS16MJ16XFP100-Ni-PFA Electroless Nickel Teflon
SS16MJ16XFP100-Ni-ETP Electroless Nickel Extreme Viton®
SS20MJ20XFP125-Z-V Zinc Viton 4.230" 2.685" 1-5/8-12 UN 1-1/4-11-1/2 NPTF 1.750" 2.357" 2.125" 4000 PSIG 1.078"
SS20MJ20XFP125-Z-AL Zinc AFLAS
SS20MJ20XFP125-Z-PFA Zinc Teflon
SS20MJ20XFP125-Z-ETP Zinc Extreme Viton®
SS20MJ20XFP125-Ni-V Electroless Nickel Viton
SS20MJ20XFP125-Ni-AL Electroless Nickel AFLAS
SS20MJ20XFP125-Ni-PFA Electroless Nickel Teflon
SS20MJ20XFP125-Ni-ETP Electroless Nickel Extreme Viton®
SS24MJ24XFP150-Ni-V Electroless Nickel Viton 4.715" 2.950" 1-7/8-12 UN 1-1/2-11-1/2 NPTF 2.000" 2.547" 2.370" 4000 PSIG 1.312"
SS24MJ24XFP150-Ni-AL Electroless Nickel AFLAS
SS24MJ24XFP150-Ni-PFA Electroless Nickel Teflon
SS24MJ24XFP150-Ni-ETP Electroless Nickel Extreme Viton®
