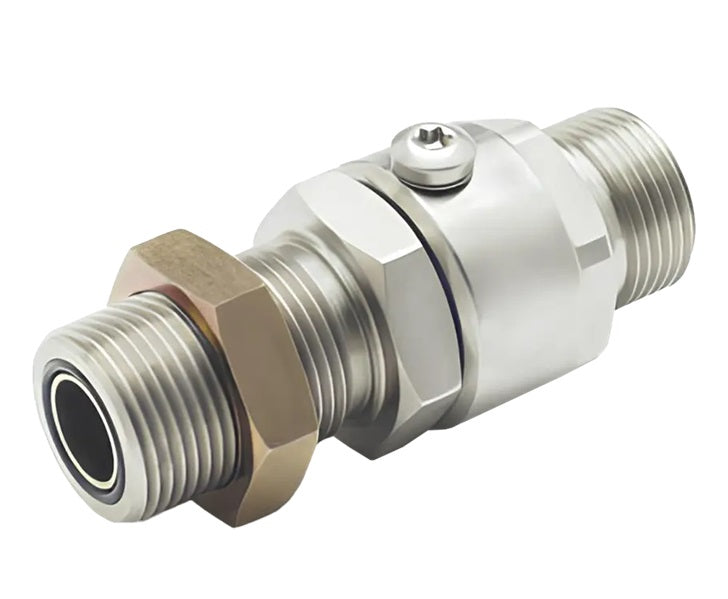

SS16MFSB16XMFS16-Z-V (2640-Z-V) Super Swivel Straight 1-7/16-12 Male Face Seal Bulkhead MFSB x 1-7/16-12 Male Face Seal MFS - 0.811" Through Hole - Zinc - Viton Seal

  • $62.11
Features:
  • Inline Swivels rotating joints provide for minimal friction allowing free movement of hoses and piping in fluid conducting power systems.
  • The compact design fits in tight areas.
  • Super Swivels one piece barrel and stem with integrated ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • This pass-through inline design is the most standard configuration in live swivels.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
  • 304 Stainless Steel (304) is recommended for low pressure corrosive environments.
  • 440C Stainless Steel (440) is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (PFA) PFA Teflon® - High resistance to many individual chemicals where Teflon seals are required. (1,500 max psi) (-15 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

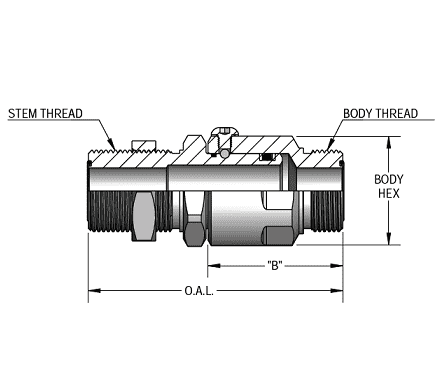

Part Number Material Seal Overall
Length
Dim.
B
Stem
Thread
Body
Thread
Stem
Hex
Body
Hex/Wrench
Max
PSIG
Through
Hole
SS4MFSB6XMFS6-Z-V Zinc Viton 3.320" 1.640" 11/16-16 UN 11/16-16 UN 1.000" 1.000" 5000 PSIG 0.250"
SS4MFSB6XMFS6-Z-AL Zinc AFLAS
SS4MFSB6XMFS6-Z-PFA Zinc Teflon
SS4MFSB6XMFS6-Z-ETP Zinc Extreme Viton®
SS4MFSB6XMFS6-NI-V Electroless Nickel Viton
SS4MFSB6XMFS6-NI-AL Electroless Nickel AFLAS
SS4MFSB6XMFS6-NI-PFA Electroless Nickel Teflon
SS4MFSB6XMFS6-NI-ETP Electroless Nickel Extreme Viton®
SS8MFSB8XMFS8-Z-V Zinc Viton 3.529" 1.709" 13/16-16 UN 13/16-16 UN 1.125" 1.375" 5000 PSIG 0.390"
SS8MFSB8XMFS8-Z-AL Zinc AFLAS
SS8MFSB8XMFS8-Z-PFA Zinc Teflon
SS8MFSB8XMFS8-Z-ETP Zinc Extreme Viton®
SS8MFSB8XMFS8-NI-V Electroless Nickel Viton
SS8MFSB8XMFS8-NI-AL Electroless Nickel AFLAS
SS8MFSB8XMFS8-NI-PFA Electroless Nickel Teflon
SS8MFSB8XMFS8-NI-ETP Electroless Nickel Extreme Viton®
SS8MFSB10XMFS10-Z-V Zinc Viton 3.798" 1.815" 1 -14 UN 1 -14 UN 1.125" 1.375" 5000 PSIG 0.484"
SS8MFSB10XMFS10-Z-AL Zinc AFLAS
SS8MFSB10XMFS10-Z-PFA Zinc Teflon
SS8MFSB10XMFS10-Z-ETP Zinc Extreme Viton®
SS8MFSB10XMFS10-NI-V Electroless Nickel Viton
SS8MFSB10XMFS10-NI-AL Electroless Nickel AFLAS
SS8MFSB8XMFS10-NI-PFA Electroless Nickel Teflon
SS8MFSB8XMFS10-NI-ETP Electroless Nickel Extreme Viton®
SS12MFSB12XMFS12-Z-V Zinc Viton 3.980" 1.900" 1-3/16-12 UN 1-3/16-12 UN 1.500" 1.560" 4500 PSIG 0.609"
SS12MFSB12XMFS12-Z-AL Zinc AFLAS
SS12MFSB12XMFS12-Z-PFA Zinc Teflon
SS12MFSB12XMFS12-Z-ETP Zinc Extreme Viton®
SS12MFSB12XMFS12-NI-V Electroless Nickel Viton
SS12MFSB12XMFS12-NI-AL Electroless Nickel AFLAS
SS12MFSB12XMFS12-NI-PFA Electroless Nickel Teflon
SS12MFSB12XMFS12-NI-ETP Electroless Nickel Extreme Viton®
SS16MFSB16XMFS16-Z-V Zinc Viton 4.450" 2.360" 1-7/16-12 UN 1-7/16-12 UN 1.750" 1.810" 4000 PSIG 0.811"
SS16MFSB16XMFS16-Z-AL Zinc AFLAS
SS16MFSB16XMFS16-Z-PFA Zinc Teflon
SS16MFSB16XMFS16-Z-ETP Zinc Extreme Viton®
SS16MFSB16XMFS16-NI-V Electroless Nickel Viton
SS16MFSB16XMFS16-NI-AL Electroless Nickel AFLAS
SS16MFSB16XMFS16-NI-PFA Electroless Nickel Teflon
SS16MFSB16XMFS16-NI-ETP Electroless Nickel Extreme Viton®
SS20MFSB20XMFS20-Z-V Zinc Viton 4.640" 2.500" 1-11/16-12 UN 1-11/16-12 UN 2.000" 2.188" 4000 PSIG 1.024"
SS20MFSB20XMFS20-Z-AL Zinc AFLAS
SS20MFSB20XMFS20-Z-PFA Zinc Teflon
SS20MFSB20XMFS20-Z-ETP Zinc Extreme Viton®
SS20MFSB20XMFS20-NI-V Electroless Nickel Viton
SS20MFSB20XMFS20-NI-AL Electroless Nickel AFLAS
SS20MFSB20XMFS20-NI-PFA Electroless Nickel Teflon
SS20MFSB20XMFS20-NI-ETP Electroless Nickel Extreme Viton®
