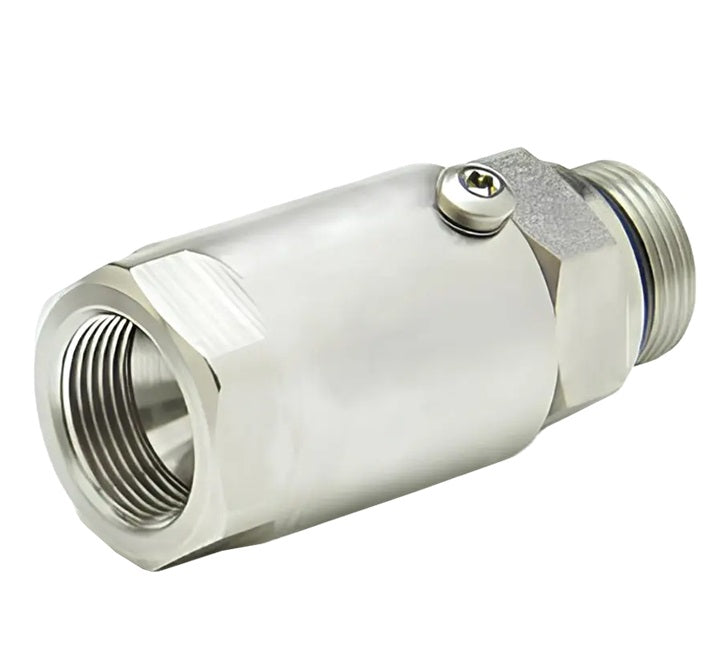

SS24MO24XFJ24-Ni-ETP by Super Swivel | 2065-Ni-ETP | 1-7/8-12 Male O-Ring ORB x 1-7/8-12 Female 37° JIC | 1.312" Through Hole | Straight | Electroless Nickel | Extreme Viton® Seal
SS24MO24XFJ24-Ni-ETP by Super Swivel | 2065-Ni-ETP | 1-7/8-12 Male O-Ring ORB x 1-7/8-12 Female 37° JIC | 1.312" Through Hole | Straight | Electroless Nickel | Extreme Viton® Seal
SS24MO24XFJ24-Ni-ETP by Super Swivel | 2065-Ni-ETP | 1-7/8-12 Male O-Ring ORB x 1-7/8-12 Female 37° JIC | 1.312" Through Hole | Straight | Electroless Nickel | Extreme Viton® Seal

SS24MO24XFJ24-Ni-ETP by Super Swivel | 2065-Ni-ETP | 1-7/8-12 Male O-Ring ORB x 1-7/8-12 Female 37° JIC | 1.312" Through Hole | Straight | Electroless Nickel | Extreme Viton® Seal

Save $225.88 Save $225.88
$564.70
$564.70 - $564.70
$564.70
$338.82
$338.82 - $338.82
$338.82

Super Swivels
Inline Swivels - Male O-Ring ORB x Female 37 deg. JIC
Specifications for Variant SKU: SS24MO24XFJ24-Ni-ETP Super Swivels #2065
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male O-Ring Boss, 1-1/2in Female JIC
Material(s): Nickel-Plated Carbon Steel
Seal Material(s): Viton/FKM
Features:
  • Inline Swivels rotating joints provide for minimal friction allowing free movement of hoses and piping in fluid conducting power systems.
  • The compact design fits in tight areas.
  • Super Swivels one piece barrel and stem with integrated ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • This pass-through inline design is the most standard configuration in live swivels.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme® Viton - High resistance to many individual chemicals. (-6ºF to 437ºF)

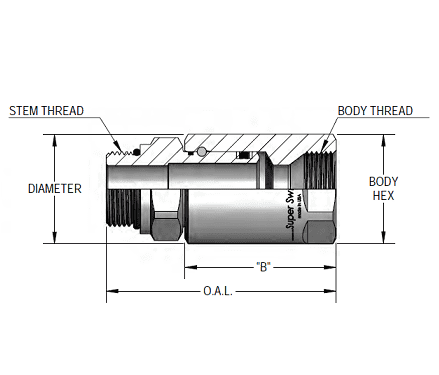

Part Number Material Seal Overall
Length		 Dim.
B		 Stem
Thread		 Body
Thread		 Stem
Hex		 Body
Hex/Wrench		 Body
Dia.		 Max
PSIG		 Through
Hole
SS4MO6XFJ6-Z-V Zinc Viton 2.640" 1.820" 9/16-18 UN 9/16-18 UN 0.750" 1.000" HEX 5000 PSIG 0.250"
SS4MO6XFJ6-Z-AL Zinc AFLAS 2.640" 1.820" 9/16-18 UN 9/16-18 UN 0.750" 1.000" HEX 5000 PSIG 0.250"
SS4MO6XFJ6-Z-ETP Zinc Extreme Viton® 2.640" 1.820" 9/16-18 UN 9/16-18 UN 0.750" 1.000" HEX 5000 PSIG 0.250"
SS4MO6XFJ6-Ni-V Electroless Nickel Viton 2.640" 1.820" 9/16-18 UN 9/16-18 UN 0.750" 1.000" HEX 5000 PSIG 0.250"
SS4MO6XFJ6-Ni-AL Electroless Nickel AFLAS 2.640" 1.820" 9/16-18 UN 9/16-18 UN 0.750" 1.000" HEX 5000 PSIG 0.250"
SS4MO6XFJ6-Ni-ETP Electroless Nickel Extreme Viton® 2.640" 1.820" 9/16-18 UN 9/16-18 UN 0.750" 1.000" HEX 5000 PSIG 0.250"

SS8MO8XFJ8-Z-V Zinc Viton 2.888" 1.950" 3/4-16 UN 3/4-16 UN 1.000" 1.375" 1.480" 5000 PSIG 0.406"
SS8M08XFJ8-Z-AL Zinc AFLAS 2.888" 1.950" 3/4-16 UN 3/4-16 UN 1.000" 1.375" 1.480" 5000 PSIG 0.406"
SS8MO8XFJ8-Z-ETP Zinc Extreme Viton® 2.888" 1.950" 3/4-16 UN 3/4-16 UN 1.000" 1.375" 1.480" 5000 PSIG 0.406"
SS8MO8XFJ8-Ni-V Electroless Nickel Viton 2.888" 1.950" 3/4-16 UN 3/4-16 UN 1.000" 1.375" 1.480" 5000 PSIG 0.406"
SS8M08XFJ8-Ni-AL Electroless Nickel AFLAS 2.888" 1.950" 3/4-16 UN 3/4-16 UN 1.000" 1.375" 1.480" 5000 PSIG 0.406"
SS8MO8XFJ8-Ni-ETP Electroless Nickel Extreme Viton® 2.888" 1.950" 3/4-16 UN 3/4-16 UN 1.000" 1.375" 1.480" 5000 PSIG 0.406"

SS8MO10XFJ10-Z-V Zinc Viton 3.110" 2.050" 7/8-14 UN 7/8-14 UN 1.000" 1.375" 1.480" 5000 PSIG 0.484"
SS8MO10XFJ10-Z-AL Zinc AFLAS 3.110" 2.050" 7/8-14 UN 7/8-14 UN 1.000" 1.375" 1.480" 5000 PSIG 0.484"
SS8MO10XFJ10-Z-ETP Zinc Extreme Viton® 3.110" 2.050" 7/8-14 UN 7/8-14 UN 1.000" 1.375" 1.480" 5000 PSIG 0.484"
SS8M010XFJ10-Ni-V Electroless Nickel Viton 3.110" 2.050" 7/8-14 UN 7/8-14 UN 1.000" 1.375" 1.480" 5000 PSIG 0.484"
SS8MO10XFJ10-Ni-AL Electroless Nickel AFLAS 3.110" 2.050" 7/8-14 UN 7/8-14 UN 1.000" 1.375" 1.480" 5000 PSIG 0.484"
SS8M010XFJ10-Ni-ETP Electroless Nickel Extreme Viton® 3.110" 2.050" 7/8-14 UN 7/8-14 UN 1.000" 1.375" 1.480" 5000 PSIG 0.484"

SS12MO12XFJ12-Z-V Zinc Viton 3.369" 2.145" 1-1/16-12 UN 1-1/16-12 UN 1.375" 1.500" 1.675" 4500 PSIG 0.609"
SS12MO12XFJ12-Z-AL Zinc AFLAS 3.369" 2.145" 1-1/16-12 UN 1-1/16-12 UN 1.375" 1.500" 1.675" 4500 PSIG 0.609"
SS12MO12XFJ12-Z-ETP Zinc Extreme Viton® 3.369" 2.145" 1-1/16-12 UN 1-1/16-12 UN 1.375" 1.500" 1.675" 4500 PSIG 0.609"
SS12MO12XFJ12-Ni-V Electroless Nickel Viton 3.369" 2.145" 1-1/16-12 UN 1-1/16-12 UN 1.375" 1.500" 1.675" 4500 PSIG 0.609"
SS12MO12XFJ12-Ni-AL Electroless Nickel AFLAS 3.369" 2.145" 1-1/16-12 UN 1-1/16-12 UN 1.375" 1.500" 1.675" 4500 PSIG 0.609"
SS12MO12XFJ12-Ni-ETP Electroless Nickel Extreme Viton® 3.369" 2.145" 1-1/16-12 UN 1-1/16-12 UN 1.375" 1.500" 1.675" 4500 PSIG 0.609"

SS16MO16XFJ16-Z-V Zinc Viton 4.020" 2.646" 1-5/16-12 UN 1-5/16-12 UN 1.625" 1.750" 1.917" 4000 PSIG 0.827"
SS16MO16XFJ16-Z-AL Zinc AFLAS 4.020" 2.646" 1-5/16-12 UN 1-5/16-12 UN 1.625" 1.750" 1.917" 4000 PSIG 0.827"
SS16MO16XFJ16-Z-ETP Zinc Extreme Viton® 4.020" 2.646" 1-5/16-12 UN 1-5/16-12 UN 1.625" 1.750" 1.917" 4000 PSIG 0.827"
SS16MO16XFJ16-Ni-V Electroless Nickel Viton 4.020" 2.646" 1-5/16-12 UN 1-5/16-12 UN 1.625" 1.750" 1.917" 4000 PSIG 0.827"
SS16MO16XFJ16-Ni-AL Electroless Nickel AFLAS 4.020" 2.646" 1-5/16-12 UN 1-5/16-12 UN 1.625" 1.750" 1.917" 4000 PSIG 0.827"
SS16MO16XFJ16-Ni-ETP Electroless Nickel Extreme Viton® 4.020" 2.646" 1-5/16-12 UN 1-5/16-12 UN 1.625" 1.750" 1.917" 4000 PSIG 0.827"

SS20MO20XFJ20-Z-V Zinc Viton 4.315" 2.850" 1-5/8-12 UN 1-5/8-12 UN 1.875" 2.125" 2.357" 4000 PSIG 1.078"
SS20MO20XFJ20-Z-AL Zinc AFLAS 4.315" 2.850" 1-5/8-12 UN 1-5/8-12 UN 1.875" 2.125" 2.357" 4000 PSIG 1.078"
SS20MO20XFJ20-Z-ETP Zinc Extreme Viton® 4.315" 2.850" 1-5/8-12 UN 1-5/8-12 UN 1.875" 2.125" 2.357" 4000 PSIG 1.078"
SS20MO20XFJ20-Ni-V Electroless Nickel Viton 4.315" 2.850" 1-5/8-12 UN 1-5/8-12 UN 1.875" 2.125" 2.357" 4000 PSIG 1.078"
SS20MO20XFJ20-Ni-AL Electroless Nickel AFLAS 4.315" 2.850" 1-5/8-12 UN 1-5/8-12 UN 1.875" 2.125" 2.357" 4000 PSIG 1.078"
SS20MO20XFJ20-Ni-ETP Electroless Nickel Extreme Viton® 4.315" 2.850" 1-5/8-12 UN 1-5/8-12 UN 1.875" 2.125" 2.357" 4000 PSIG 1.078"

SS24MO24XFJ24-Ni-V Electroless Nickel Viton 5.005" 3.410" 1-7/8-12 UN 1-7/8-12 UN 2.125" 2.375" 2.550" 4000 PSIG 1.312"
SS24MO24XFJ24-Ni-AL Electroless Nickel AFLAS 5.005" 3.410" 1-7/8-12 UN 1-7/8-12 UN 2.125" 2.375" 2.550" 4000 PSIG 1.312"
SS24MO24XFJ24-Ni-ETP Electroless Nickel Extreme Viton® 5.005" 3.410" 1-7/8-12 UN 1-7/8-12 UN 2.125" 2.375" 2.550" 4000 PSIG 1.312"
Super Swivels

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
