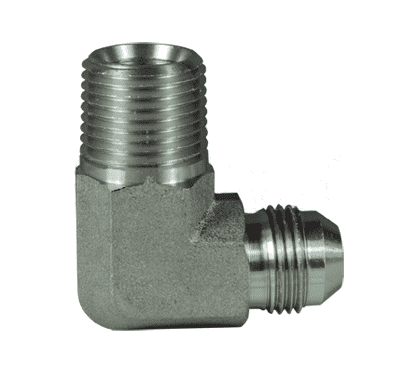

SS2501-16-16 Dixon 316 Stainless Steel 90 deg. 1-5/16"-12 Male 37 deg. JIC Flare x 1"-11-1/2 Male NPTF

SS2501-16-16 Dixon Valve 316 Stainless Steel 90 deg. 1-5/16"-12 Male 37 deg. JIC Flare x 1"-11-1/2 Male NPTF

Save $63.06 Save $63.06
$157.65
$157.65 - $157.65
$157.65
$94.59
$94.59 - $94.59
$94.59

SAE / JIC Fittings - 90 deg. Male 37 deg. JIC Flare x Male NPTF - 316 Stainless Steel
Specifications for Variant SKU: SS2501-16-16 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male JIC, 1in Male NPTF
Material(s): 316 Stainless Steel
Features:
  • N/A
Part Number Male 37 deg. JIC Flare Male NPTF Working Pressure Weight (Lbs.)
SS2501-4-4 7/16"-20 1/4"-18 4500 PSI 0.1000
SS2501-6-6 9/16"-18 3/8"-18 4000 PSI 0.2000
SS2501-8-8 3/4"-16 1/2"-14 3000 PSI 0.2800
SS2501-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.4700
SS2501-16-16 1-5/16"-12 1"-11-1/2 2000 PSI N/A
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
