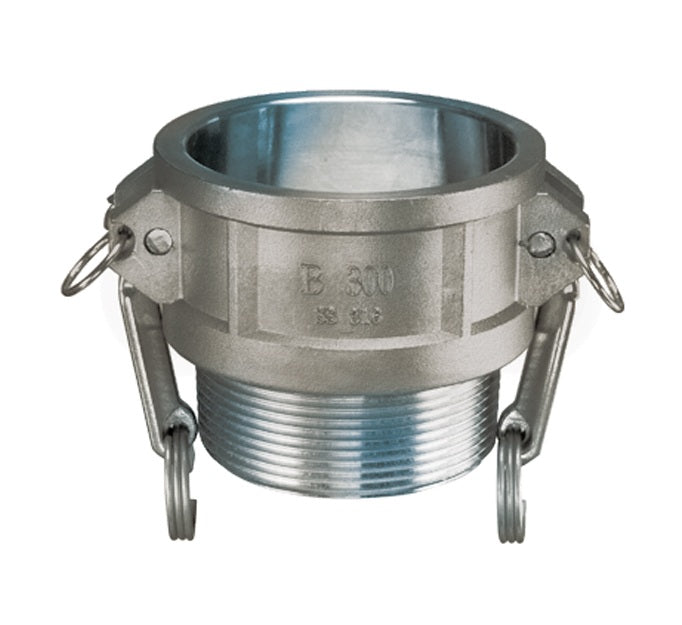

SS304-B300 by Kuriyama | SS304-B Series | Part B | Cam & Groove Adapter | 3" Coupler x 3" Male NPT | 304 Stainless Steel

SS304-B300 by Kuriyama | SS304-B Series | Part B | Cam & Groove Adapter | 3" Coupler x 3" Male NPT | 304 Stainless Steel

Save $16.42 Save $16.42
$78.52
$78.52 - $78.52
$78.52
$62.10
$62.10 - $62.10
$62.10

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SS304-B Series | Part B | Coupler x Male NPT | 304 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS304-B300 Kuriyama
Series: SS304-B Series
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 3in Male NPT
Material(s): 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS304-B050 1/2" 250 PSI A666/304 0.30 lbs
SS304-B075 3/4" 250 PSI A666/304 0.42 lbs
SS304-B100 1" 250 PSI A666/304 0.64 lbs
SS304-B125 1-1/4" 250 PSI A666/304 1.32 lbs
SS304-B150 1-1/2" 250 PSI A666/304 1.50 lbs
SS304-B200 2" 250 PSI A666/304 1.92 lbs
SS304-B250 2-1/2" 150 PSI A666/304 2.68 lbs
SS304-B300 3" 150 PSI A666/304 3.20 lbs
SS304-B400 4" 150 PSI A666/304 6.58 lbs
SS304-B500 5" 75 PSI A666/304 6.80 lbs
SS304-B600 6" 75 PSI A666/304 10.98 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
