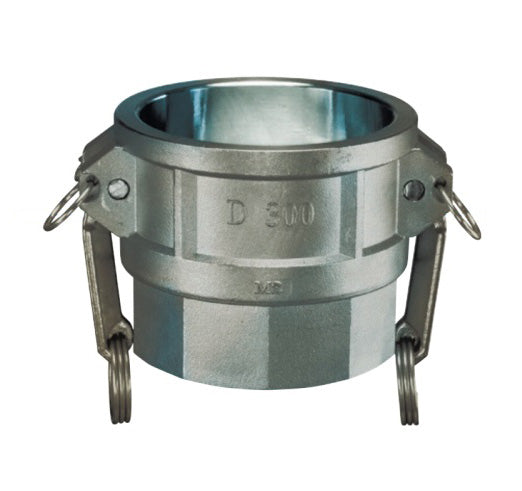

SS304-D075 by Kuriyama | SS304-D Series | Part D | Cam & Groove Adapter | 3/4" Coupler x 3/4" Female NPT | 304 Stainless Steel

SS304-D075 by Kuriyama | SS304-D Series | Part D | Cam & Groove Adapter | 3/4" Coupler x 3/4" Female NPT | 304 Stainless Steel

Save $7.89 Save $7.89
$22.62
$22.62 - $22.62
$22.62
$14.73
$14.73 - $14.73
$14.73

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SS304-D Series | Part D | Coupler x Female NPT | 304 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS304-D075 Kuriyama
Series: SS304-D Series
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 3/4in Female Cam & Groove, 3/4in Female NPT
Material(s): 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS304-D050 1/2" 250 PSI A666/304 0.40 lbs
SS304-D075 3/4" 250 PSI A666/304 0.52 lbs
SS304-D100 1" 250 PSI A666/304 0.74 lbs
SS304-D125 1-1/4" 250 PSI A666/304 1.47 lbs
SS304-D150 1-1/2" 250 PSI A666/304 1.52 lbs
SS304-D200 2" 250 PSI A666/304 2.16 lbs
SS304-D250 2-1/2" 150 PSI A666/304 3.12 lbs
SS304-D300 3" 150 PSI A666/304 3.82 lbs
SS304-D400 4" 150 PSI A666/304 5.14 lbs
SS304-D500 5" 75 PSI A666/304 8.00 lbs
SS304-D600 6" 75 PSI A666/304 10.06 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
