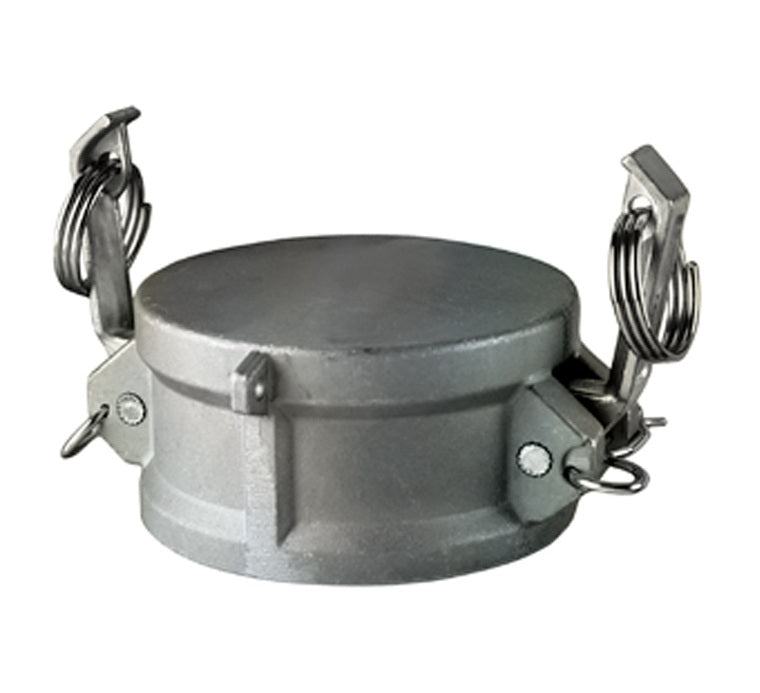

SS304-DC500 by Kuriyama | SS304-DC Series | Part DC | Cam & Groove Dust Cap | 5" Size | 304 Stainless Steel

Save $26.77

$134.93

$134.93 - $134.93

$134.93

$108.16

$108.16 - $108.16

$108.16

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Cap | SS304-DC Series | Part DC | 304 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: SS304-DC500 Kuriyama
Series:	SS304-DC Series
Cam Type:	Type DC
Ends Configuration:	5in Female Cam & Groove
Material(s):	304 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

ASTM stainless steel alloy.
Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
304 stainless steel handles, handle pins, pull rings, and safety clips.
Buna-N gasket included.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
SS304-DC050	1/2"	250 PSI	A666/304	0.25 lbs
SS304-DC075	3/4"	250 PSI	A666/304	0.36 lbs
SS304-DC100	1"	250 PSI	A666/304	0.54 lbs
SS304-DC125	1-1/4"	250 PSI	A666/304	1.30 lbs
SS304-DC150	1-1/2"	250 PSI	A666/304	1.46 lbs
SS304-DC200	2"	250 PSI	A666/304	1.78 lbs
SS304-DC250	2-1/2"	150 PSI	A666/304	2.38 lbs
SS304-DC300	3"	150 PSI	A666/304	3.04 lbs
SS304-DC400	4"	150 PSI	A666/304	5.02 lbs
SS304-DC500	5"	75 PSI	A666/304	7.35 lbs
SS304-DC600	6"	75 PSI	A666/304	9.92 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
