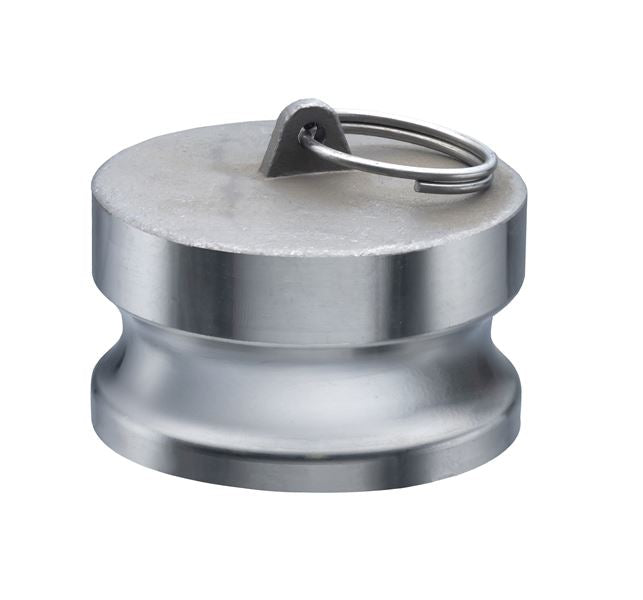

SS304-DP600 by Kuriyama | SS304-DP Series | Part DP | Cam & Groove Dust Plug | 6" Size | 304 Stainless Steel

SS304-DP600 by Kuriyama | SS304-DP Series | Part DP | Cam & Groove Dust Plug | 6" Size | 304 Stainless Steel

Save $33.58 Save $33.58
$181.11
$181.11 - $181.11
$181.11
$147.53
$147.53 - $147.53
$147.53

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Plug | SS304-DP Series | Part DP | 304 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS304-DP600 Kuriyama
Series: SS304-DP Series
Cam Type: Type DP
Ends Configuration: 6in Male Cam & Groove
Material(s): 304 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS304-DP050 1/2" 250 PSI A666/304 0.15 lbs
SS304-DP075 3/4" 250 PSI A666/304 0.20 lbs
SS304-DP100 1" 250 PSI A666/304 0.28 lbs
SS304-DP125 1-1/4" 250 PSI A666/304 0.60 lbs
SS304-DP150 1-1/2" 250 PSI A666/304 0.72 lbs
SS304-DP200 2" 250 PSI A666/304 0.96 lbs
SS304-DP250 2-1/2" 150 PSI A666/304 1.47 lbs
SS304-DP300 3" 150 PSI A666/304 1.94 lbs
SS304-DP400 4" 150 PSI A666/304 3.36 lbs
SS304-DP600 6" 75 PSI A666/304 9.08 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
