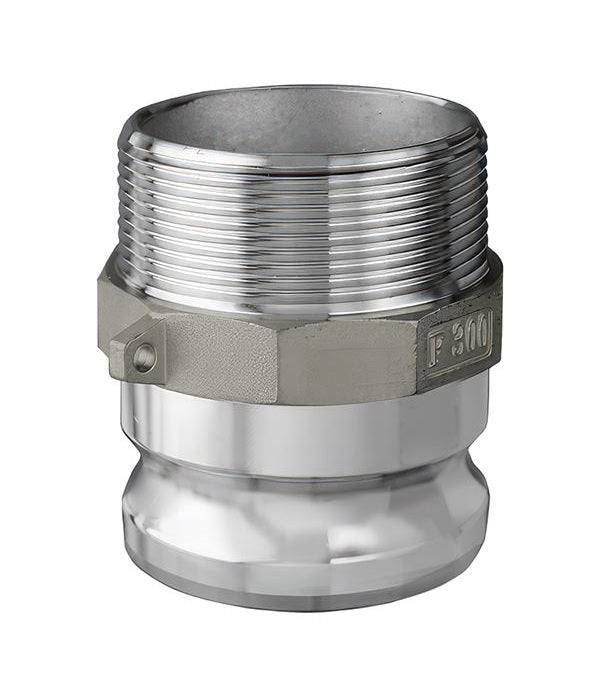

SS304-F100 by Kuriyama | SS304-F Series | Part F | Cam & Groove Adapter | 1" Coupler x 1" Male NPT | 304 Stainless Steel

SS304-F100 by Kuriyama | SS304-F Series | Part F | Cam & Groove Adapter | 1" Coupler x 1" Male NPT | 304 Stainless Steel

Save $8.27 Save $8.27
$24.57
$24.57 - $24.57
$24.57
$16.30
$16.30 - $16.30
$16.30

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SS304-F Series | Part F | Coupler x Male NPT | 304 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SS304-F100 Kuriyama
Series: SS304-F Series
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 1in Male Cam & Groove, 1in Male NPT
Material(s): 304 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
SS304-F050 1/2" 250 PSI A666/304 0.30 lbs
SS304-F075 3/4" 250 PSI A666/304 0.40 lbs
SS304-F100 1" 250 PSI A666/304 0.56 lbs
SS304-F125 1-1/4" 250 PSI A666/304 1.06 lbs
SS304-F150* 1-1/2" 250 PSI A666/304 1.28 lbs
SS304-F200* 2" 250 PSI A666/304 1.82 lbs
SS304-F250 2-1/2" 150 PSI A666/304 2.68 lbs
SS304-F300* 3" 150 PSI A666/304 3.92 lbs
SS304-F400* 4" 150 PSI A666/304 6.32 lbs
SS304-F500 5" 75 PSI A666/304 8.26 lbs
SS304-F600 6" 75 PSI A666/304 11.27 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
