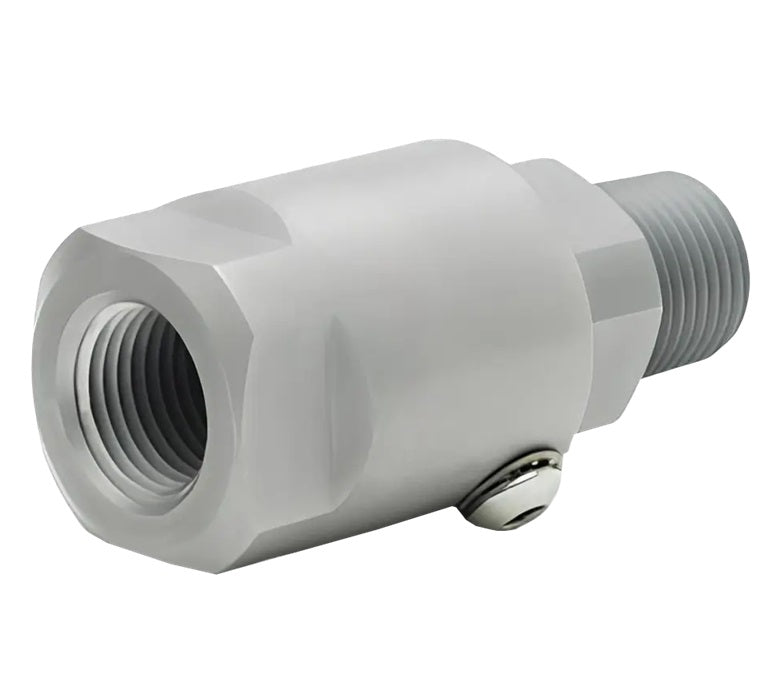

SS4MP25XFP25-440-AL by Super Swivel | 1206-440-AL | 1/4-18 Male Pipe NPTF x 1/4-18 Female Pipe NPTF | 0.250" Through Hole | Straight | 440c Stainless Steel | AFLAS Seal

SS4MP25XFP25-440-AL by Super Swivel | 1206-440-AL | 1/4-18 Male Pipe NPTF x 1/4-18 Female Pipe NPTF | 0.250" Through Hole | Straight | 440c Stainless Steel | AFLAS Seal

Save $23.57 Save $23.57
$212.14
$212.14 - $212.14
$212.14
$188.57
$188.57 - $188.57
$188.57

Super Swivels
440c Stainless Steel - Straight - Male Pipe NPTF X Female Pipe NPTF
Specifications for Variant SKU: SS4MP25XFP25-440-AL Super Swivels #1206
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/4in Female NPTF
Material(s): 440c Stainless Steel
Seal Material(s): AFLAS
Features:
  • Rated up to 5000 PSI
  • Super Swivels can connect directly to hose lines which would do away with adapters.
  • Reduce the complexity of hose lines for 90° connections.
  • Less hose is required with Super Swivels live swivels reducing space needs.
  • Live swivel action reduces risk of hose twisting and kinking even in 90° angel connections.
  • The increased hose movement allowed by Super Swivels superior design reduces system rigidity and helps absorb some system impulses.
  • Less hydraulic line congestion, hose kinking, shock damage and twisting means lower maintenance costs and less downtime.
  • Simplified hose configuration, less hose and adapters when combined with reduced repairs and downtime reduce the overall cost of hydraulics.
Stainless Steel Properties:
  • 304 Stainless Steel:
    • Nickel/chrome alloy, non-hardening, austenitic, non-magnetic stainless steel.
    • Offers excellent resistance to chemical corrodents.
    • Swivels have a medium pressure rating.
    • Recommended for low pressure corrosive environments.
  • 440c Stainless Steel:
    • High carbon - high chrome, heat treated, martensitic, magnetic stainless Steel.
    • Offers chemical corrosion resistance.
    • Swivels have a high pressure rating.
    • Not as corrosion resistant as 300 Series Stainless Steel.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All stainless steel swivels have a 4 to 1 proof pressure.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)
Part Number Material Seal Overall
Length		 Dim.
B		 Dim.
D		 Stem.
Thread		 Body
Thread		 Wrench Stem
Wrench		 Max
PSIG		 Through
Hole
SS4MP25XFP25-440-AL 440c Stainless Steel AFLAS 2.550" 1.570" 0.975" 1/4-18 NPTF 1/4-18 NPTF 0.875" 0.625" 5000 PSIG Ø 0.250"
SS4MP25XFP25-440-V 440c Stainless Steel Viton 2.550" 1.570" 0.975" 1/4-18 NPTF 1/4-18 NPTF 0.875" 0.625" 5000 PSIG Ø 0.250"
SS4MP25XFP25-440-ETP 440c Stainless Steel Extreme Viton® 2.550" 1.570" 0.975" 1/4-18 NPTF 1/4-18 NPTF 0.875" 0.625" 5000 PSIG Ø 0.250"

SS8MP38XFP38-440-AL 440c Stainless Steel AFLAS 2.610" 1.570" 1.290" 3/8-18 NPTF 3/8-18 NPTF 1.125" 1.000" 5000 PSIG Ø 0.406"
SS8MP38XFP38-440-V 440c Stainless Steel Viton 2.610" 1.570" 1.290" 3/8-18 NPTF 3/8-18 NPTF 1.125" 1.000" 5000 PSIG Ø 0.406"
SS8MP38XFP38-440-ETP 440c Stainless Steel Extreme Viton® 2.610" 1.570" 1.290" 3/8-18 NPTF 3/8-18 NPTF 1.125" 1.000" 5000 PSIG Ø 0.406"

SS8MP50XFP50-440-AL 440c Stainless Steel AFLAS 2.890" 1.650" 1.480" 1/2-14 NPTF 1/2-14 NPTF 1.250" 1.000" 5000 PSIG Ø 0.530"
SS8MP50XFP50-440-V 440c Stainless Steel Viton 2.890" 1.650" 1.480" 1/2-14 NPTF 1/2-14 NPTF 1.250" 1.000" 5000 PSIG Ø 0.530"
SS8MP50XFP50-440-ETP 440c Stainless Steel Extreme Viton® 2.890" 1.650" 1.480" 1/2-14 NPTF 1/2-14 NPTF 1.250" 1.000" 5000 PSIG Ø 0.530"

SS12MP75XFP75-440-AL 440c Stainless Steel AFLAS 2.910" 1.670" 1.675" 3/4-14 NPTF 3/4-14 NPTF 1.500" 1.125" 4500 PSIG Ø 0.689"
SS12MP75XFP75-440-V 440c Stainless Steel Viton 2.910" 1.670" 1.675" 3/4-14 NPTF 3/4-14 NPTF 1.500" 1.125" 4500 PSIG Ø 0.689"
SS12MP75XFP75-440-ETP 440c Stainless Steel Extreme Viton® 2.910" 1.670" 1.675" 3/4-14 NPTF 3/4-14 NPTF 1.500" 1.125" 4500 PSIG Ø 0.689"

SS16MP100XFP100-440-AL 440c Stainless Steel AFLAS 3.680" 2.250" 1.918" 1-11-1/2 NPTF 1-11-1/2 NPTF 1.750" 1.375" 4000 PSIG Ø 0.906"
SS16MP100XFP100-440-V 440c Stainless Steel Viton 3.680" 2.250" 1.918" 1-11-1/2 NPTF 1-11-1/2 NPTF 1.750" 1.375" 4000 PSIG Ø 0.906"
SS16MP100XFP100-440-ETP 440c Stainless Steel Extreme Viton® 3.680" 2.250" 1.918" 1-11-1/2 NPTF 1-11-1/2 NPTF 1.750" 1.375" 4000 PSIG Ø 0.906"

SS20MP125XFP125-440-AL 440c Stainless Steel AFLAS 3.910" 2.400" 2.358" 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.125" 1.750" 4000 PSIG Ø 1.181"
SS20MP125XFP125-440-V 440c Stainless Steel Viton 3.910" 2.400" 2.358" 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.125" 1.750" 4000 PSIG Ø 1.181"
SS20MP125XFP125-440-ETP 440c Stainless Steel Extreme Viton® 3.910" 2.400" 2.358" 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.125" 1.750" 4000 PSIG Ø 1.181"

SS24MP150XFP150-440-AL 440c Stainless Steel AFLAS 4.430" 2.950" 2.548" 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPTF 2.375" 2.000" 4000 PSIG Ø 1.312"
SS24MP150XFP150-440-V 440c Stainless Steel Viton 4.430" 2.950" 2.548" 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPTF 2.375" 2.000" 4000 PSIG Ø 1.312"
SS24MP150XFP150-440-ETP 440c Stainless Steel Extreme Viton® 4.430" 2.950" 2.548" 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPTF 2.375" 2.000" 4000 PSIG Ø 1.312"

SS32MP200XFP200-440-AL 440c Stainless Steel AFLAS 5.050" 3.450" 3.052" 2-11-1/2 NPTF 2-11-1/2 NPTF 2.875" 2.500" 3000 PSIG Ø 1.781"
SS32MP200XFP200-440-V 440c Stainless Steel Viton 5.050" 3.450" 3.052" 2-11-1/2 NPTF 2-11-1/2 NPTF 2.875" 2.500" 3000 PSIG Ø 1.781"
SS32MP200XFP200-440-ETP 440c Stainless Steel Extreme Viton® 5.050" 3.450" 3.052" 2-11-1/2 NPTF 2-11-1/2 NPTF 2.875" 2.500" 3000 PSIG Ø 1.781"
Super Swivels

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
