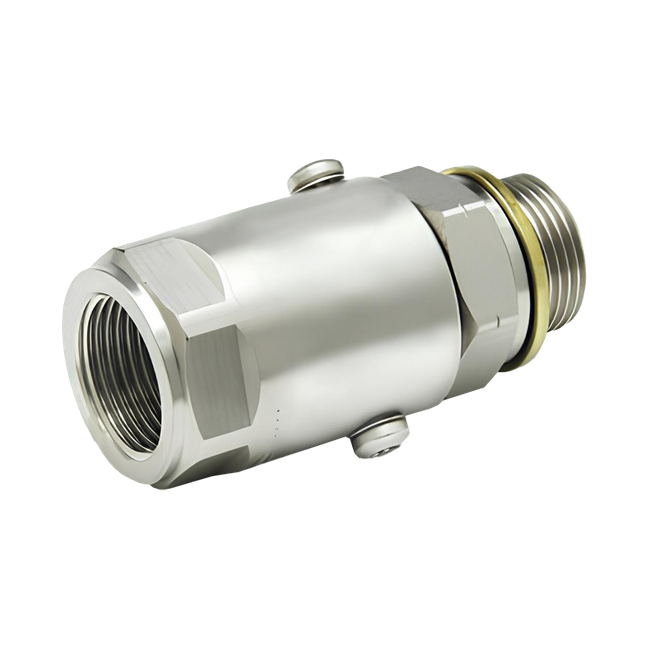

SS6MBSPP6XFBSPP6-NI-V by Super Swivel | #50203 | G 3/8-19 Male BSPP x G 3/8-19 Female BSPP | 0.312" Through Hole | Straight | Nickel | Viton Seal

Save $8.13

$74.08

$74.08 - $74.08

$74.08

$65.95

$65.95 - $65.95

$65.95

Super Swivels
BSPP Inline Swivels - Male BSPP X Female BSPP

Specifications for Variant SKU: SS6MBSPP6XFBSPP6-NI-V Super Swivels #50203
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male BSPP, 3/8in Female BSPP
Material(s):	Nickel
Seal Material(s):	Viton

Features:
BSPP Swivels (British Standard Parallel Pipe) are most common in the UK, Europe, Asia, Australia, New Zealand and South Africa. A parallel thread fitting uses a bonded seal ring. This bonded ring seal is sandwiched in-between a shoulder on the male fitting and the face of the female fitting and is squeezed in place with no thread sealant required. Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks. BSPP sizes range from 1/4" through 11/2" body thread with multiple fittings and seal configurations including Inline and 90° Swivels.
Notes:
Super Swivels are not recommended for breathing air/oxygen or steam. All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure. Any series stem will fit with the same series body.
Base Material and Plating:
Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc. Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
(V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F) (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)


Part Number	Material	Seal	Overall Length	Dim. B	Dim. D Ø	Dim. C	Wrench Hex	Body Thread	Stem Thread	Max Pressure	Through Hole
SS4MBSPP4XFBSPP4-Z-V	Zinc	Viton	2.665" 67.7mm	1.720" 43.7mm	0.992" 25.2mm	1.122" 28.4mm	0.812" 20.6mm	G 1/4-19 BSPP	G 1/4-19 BSPP	5,000 PSI 345 BAR	0.250" 6.3mm
SS4MBSPP4XFBSPP4-Z-AL	Zinc	AFLAS
SS4MBSPP4XFBSPP4-Z-ETP	Zinc	Viton Extreme

SS4MBSPP4XFBSPP4-NI-V	Electroless Nickel	Viton	2.665" 67.7mm	1.720" 43.7mm	0.992" 25.2mm	1.122" 28.4mm	0.812" 20.6mm	G 1/4-19 BSPP	G 1/4-19 BSPP	5,000 PSI 345 BAR	0.250" 6.3mm
SS4MBSPP4XFBSPP4-NI-AL	Electroless Nickel	AFLAS
SS4MBSPP4XFBSPP4-NI-ETP	Electroless Nickel	Viton Extreme

SS6MBSPP6XFBSPP6-Z-V	Zinc	Viton	2.728" 69.3mm	1.780" 45.2mm	1.302" 33.1mm	1.702" 43.2mm	0.937" 23.8mm	G 3/8-19 BSPP	G 3/8-19 BSPP	5,000 PSI 345 BAR	0.312" 7.9mm
SS6MBSPP6XFBSPP6-Z-AL	Zinc	AFLAS
SS6MBSPP6XFBSPP6-Z-ETP	Zinc	Viton Extreme

SS6MBSPP6XFBSPP6-NI-V	Electroless Nickel	Viton	2.728" 69.3mm	1.780" 45.2mm	1.302" 33.1mm	1.702" 43.2mm	0.937" 23.8mm	G 3/8-19 BSPP	G 3/8-19 BSPP	5,000 PSI 345 BAR	0.312" 7.9mm
SS6MBSPP6XFBSPP6-NI-AL	Electroless Nickel	AFLAS
SS6MBSPP6XFBSPP6-NI-ETP	Electroless Nickel	Viton Extreme

SS8DBMBSPP8XFBSPP8-Z-V	Zinc	Viton	3.102" 78.8mm	2.080" 52.8mm	1.480" 37.6mm	1.880" 47.7mm	1.125" 28.6mm	G 1/2-14 BSPP	G 1/2-14 BSPP	5,000 PSI 345 BAR	0.406" 10.3mm
SS8DBMBSPP8XFBSPP8-Z-AL	Zinc	AFLAS
SS8DMBSPP8XFBSPP8-Z-ETP	Zinc	Viton Extreme

SS8DBMBSPP8XFBSPP8-NI-V	Electroless Nickel	Viton	3.102" 78.8mm	2.080" 52.8mm	1.480" 37.6mm	1.880" 47.7mm	1.125" 28.6mm	G 1/2-14 BSPP	G 1/2-14 BSPP	5,000 PSI 345 BAR	0.406" 10.3mm
SS8DBMBSPP8XFBSPP8-NI-AL	Electroless Nickel	AFLAS
SS8DMBSPP8XFBSPP8-NI-ETP	Electroless Nickel	Viton Extreme

SS12DBMBSPP12XFBSPP12-Z-V	Zinc	Viton	3.302" 83.9mm	2.100" 53.3mm	1.675" 42.5mm	2.070" 52.5mm	1.312" 33.3mm	G 3/4-14 BSPP	G 3/4-14 BSPP	5,000 PSI 345 BAR	0.630" 16.0mm
SS12DBMBSPP12XFBSPP12-Z-AL	Zinc	AFLAS
SS12DBMBSPP12XFBSPP12-Z-ETP	Zinc	Viton Extreme

SS12DBMBSPP12XFBSPP12-NI-V	Electroless Nickel	Viton	3.302" 83.9mm	2.100" 53.3mm	1.675" 42.5mm	2.070" 52.5mm	1.312" 33.3mm	G 3/4-14 BSPP	G 3/4-14 BSPP	5,000 PSI 345 BAR	0.630" 16.0mm
SS12DBMBSPP12XFBSPP12-NI-AL	Electroless Nickel	AFLAS
SS12DBMBSPP12XFBSPP12-NI-ETP	Electroless Nickel	Viton Extreme

SS16DBMBSPP16XFBSPP16-Z-V	Zinc	Viton	3.947" 100.3mm	2.550" 64.8mm	1.917" 48.7mm	2.320" 58.9mm	1.625" 41.3mm	G 1-11 BSPP	G 1-11 BSPP	4,500 PSI 310 BAR	0.787" 20.0mm
SS16DBMBSPP16XFBSPP16-Z-AL	Zinc	AFLAS
SS16DBMBSPP16XFBSPP16-Z-ETP	Zinc	Viton Extreme

SS16DBMBSPP16XFBSPP16-NI-V	Electroless Nickel	Viton	3.947" 100.3mm	2.550" 64.8mm	1.917" 48.7mm	2.320" 58.9mm	1.625" 41.3mm	G 1-11 BSPP	G 1-11 BSPP	4,500 PSI 310 BAR	0.787" 20.0mm
SS16DBMBSPP16XFBSPP16-NI-AL	Electroless Nickel	AFLAS
SS16DBMBSPP16XFBSPP16-NI-ETP	Electroless Nickel	Viton Extreme

SS20MBSPP20XFBSPP20-Z-V	Zinc	Viton	4.265" 108.3mm	2.650" 67.3mm	2.358" 59.9mm	2.760" 70.1mm	2.000" 50.8mm	G 1-1/4-11 BSPP	G 1-1/4-11 BSPP	4,000 PSI 275 BAR	0.984" 25.0mm
SS20MBSPP20XFBSPP20-Z-AL	Zinc	AFLAS
SS20MBSPP20XFBSPP20-Z-ETP	Zinc	Viton Extreme

SS20MBSPP20XFBSPP20-NI-V	Electroless Nickel	Viton	4.265" 108.3mm	2.650" 67.3mm	2.358" 59.9mm	2.760" 70.1mm	2.000" 50.8mm	G 1-1/4-11 BSPP	G 1-1/4-11 BSPP	4,000 PSI 275 BAR	0.984" 25.0mm
SS20MBSPP20XFBSPP20-NI-AL	Electroless Nickel	AFLAS
SS20MBSPP20XFBSPP20-NI-ETP	Electroless Nickel	Viton Extreme

SS24MBSPP24XFBSPP24-NI-V	Electroless Nickel	Viton	5.085" 129.2mm	3.250" 82.5mm	2.548" 64.7mm	2.950" 74.9mm	2.250" 57.1mm	G 1-1/2-11 BSPP	G 1-1/2-11 BSPP	4,000 PSI 275 BAR	1.260" 32.0mm
SS24MBSPP24XFBSPP24-NI-AL	Electroless Nickel	AFLAS
SS24MBSPP24XFBSPP24-NI-ETP	Electroless Nickel	Viton Extreme

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
