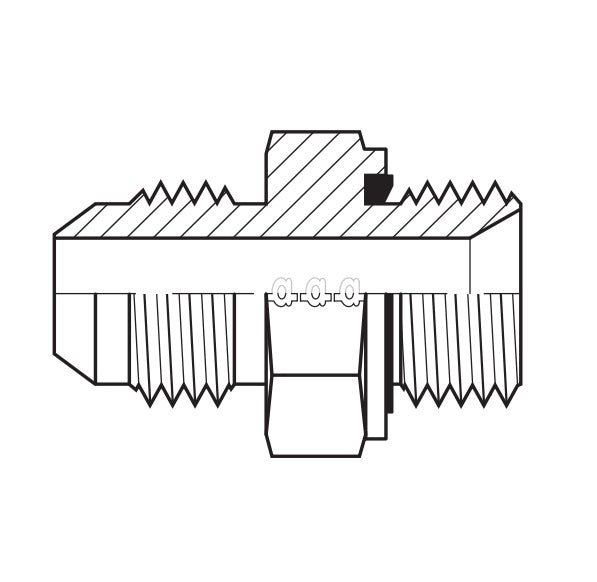

SS9005ES-04-02 by AdaptAll | Hydraulic Adapter | -04 Male JIC x -02 Male BSPP | with Elastomeric Seal | Stainless Steel

SS9005ES-04-02 by AdaptAll | Hydraulic Adapter | -04 Male JIC x -02 Male BSPP | with Elastomeric Seal | Stainless Steel

Save $12.01 Save $12.01
$30.02
$30.02 - $30.02
$30.02
$18.01
$18.01 - $18.01
$18.01

Adaptall
Hydraulic Hose Adapter | Male JIC x Male BSPP with Elastomeric Seal | Stainless Steel
Specifications for Variant SKU: SS9005ES-04-02 Adaptall
Series: SS9005ES
Shape (Orientation): Straight
Ends Configuration: 1/4in Male JIC, 1/8in Male BSPP
Material(s): Stainless Steel
Applicable Specs & Approvals: ISO 1179, ISO 8434-6, BS 5200
Relevant Standards:
  • ISO 1179 / ISO 8434-6 / BS 5200
Part Number Male JIC
Size		 Male JIC
Thread		 Male BSPP
Size		 Male BSPP
Thread
SS9005ES-04-02 1/4" 7/16-20 1/8" 1/8-28
SS9005ES-04-04 1/4" 7/16-20 1/4" 1/4-19
SS9005ES-04-06 1/4" 7/16-20 3/8" 3/8-19
SS9005ES-06-04 3/8" 9/16-18 1/4" 1/4-19
SS9005ES-06-06 3/8" 9/16-18 3/8" 3/8-19
SS9005ES-06-08 3/8" 9/16-18 1/2" 1/2-14
SS9005ES-08-06 1/2" 3/4-116 3/8" 3/8-19
SS9005ES-08-08 1/2" 3/4-116 1/2" 1/2-14
SS9005ES-12-12 3/4" 1-1/16-12 3/4" 3/4-14
SS9005ES-16-16 1" 1-5/16-12 1" 1-11

Adaptall

Adaptall specializes in the conversion of hydraulic adapters and fittings, between International (“Metric”) and American (“Imperial”) thread types. These include British (BSPP, & BSPT), JIS, Kobelco, Komatsu, and Metric on the International side, as well as JIC, NPT, ORFS, and SAE ORB for Imperial thread types. Industries served include construction, mining / aggregates, pulp & paper, agriculture, manufacturing, industrial, marine, aerospace, military, OEM and more.
