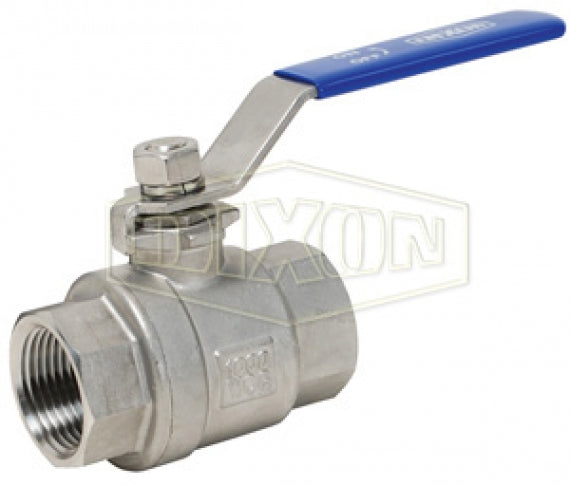

SSBV100 by Dixon Valve | Ball Valve | Full Port | 1" Female NPT x 1" Female NPT | 316 Stainless Steel

Name: SSBV100 by Dixon Valve | Ball Valve | Full Port | 1" Female NPT x 1" Female NPT | 316 Stainless Steel
Brand: Dixon
SKU: SSBV100 Dixon
Price: 60.87 USD
Availability: InStock

Save $40.58

$101.45

$101.45 - $101.45

$101.45

$60.87

$60.87 - $60.87

$60.87

Dixon Valve & Coupling
Ball Valve | Full Port | 316 Stainless Steel

For use with water, oil, and gas.

Specifications for Variant SKU: SSBV100 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	316 Stainless Steel

Features:
Blow-out proof stem design.
Materials:
Body: 316 Stainless Steel. 316 stainless steel ball and stem. RPTFE seat, joint gasket, and thrust washer.
Specifications:
Temperature Range: -20°F to 300°F (-29°C to 149°C) as long as the valve is run fully open/closed Pressure Rating: 1/4" - 2" rated to 1000 PSI WOG (CWP) 2-1/2" - 3" rated to 800 PSI WOG (CWP) 100 PSI saturated steam

Part Number	Female NPT x Female NPT	Port
SSBV25	1/4"	Full
SSBV38	3/8"	Full
SSBV50	1/2"	Full
SSBV75	3/4"	Full
SSBV100	1"	Full
SSBV125	1-1/4"	Full
SSBV150	1-1/2"	Full
SSBV200	2"	Full
SSBV250	2-1/2"	Full
SSBV300	3"	Full
