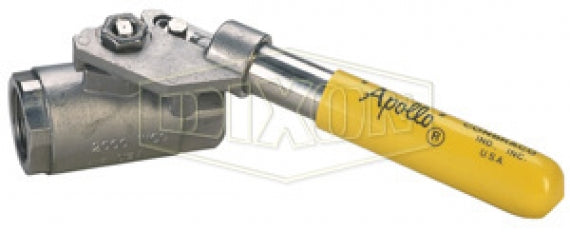

SSBV100SR by Dixon Valve | "Deadman" Spring Return Handle Ball Valve | Standard Port | 1" Female NPT x 1" Female NPT | 316 Stainless Steel

SSBV100SR by Dixon Valve | "Deadman" Spring Return Handle Ball Valve | Standard Port | 1" Female NPT x 1" Female NPT | 316 Stainless Steel

Save $21.65 Save $21.65
$374.46
$374.46 - $374.46
$374.46
$352.81
$352.81 - $352.81
$352.81

Dixon Valve & Coupling
"Deadman" Spring Return Handle Ball Valve | 316 Stainless Steel
Specifications for Variant SKU: SSBV100SR Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Features:
  • Blow-out proof stem design.
  • Adjustable packing gland.
  • Spring return closes valve when not held open.
Materials:
  • 316 Stainless Steel
  • PTFE seal.
Specifications:
  • Operating torque approximately three times standard valve torque.
  • Pressure rating: 2000 PSI WOG 1/2" to 1"; 1500 PSI WOG 1-1/4" to 2".
  • 150 PSI saturated steam, all sizes.
  • Vacuum service to 29 inches Hg, all sizes.
Part Number Female NPT x Female NPT Port
SSBV50SR 1/2" Full
SSBV75SR 3/4" Standard
SSBV100SR 1" Standard
SSBV125SR 1-1/4" Standard
SSBV150SR 1-1/2" Standard
SSBV200SR 2" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
