SSGC32-4x4 Couplamatic Grip Crimp Coupling - 316 Stainless Steel - O-Ring Face Seal (ORF) - 90° Female Swivel - 1/4" Hose ID - 9/16x18 Thread Size

SSGC32-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 9/16x18 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | 316 Stainless Steel

Save $46.36 Save $46.36
$115.90
$115.90 - $115.90
$115.90
$69.54
$69.54 - $69.54
$69.54

Couplamatic Systems Inc.
Grip Crimp Series - 316 Stainless Steel - O-Ring Face Seal (ORF) - 90° Female Swivel
Specifications for Variant SKU: SSGC32-4x4 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • 316 Stainless Steel Construction.

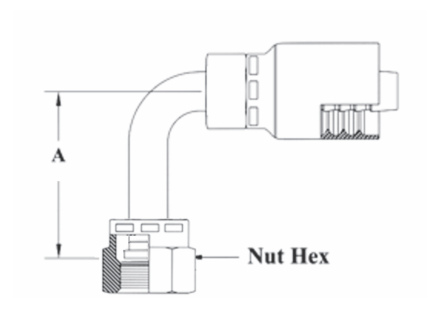

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex
SSGC32-4x4 1/4" 9/16x18 1/4" 1.05" 11/16"
SSGC32-6x6 3/8" 11/16x16 3/8" 1.15" 13/16"
SSGC32-8x8 1/2" 13/16x16 1/2" 1.40" 15/16"
