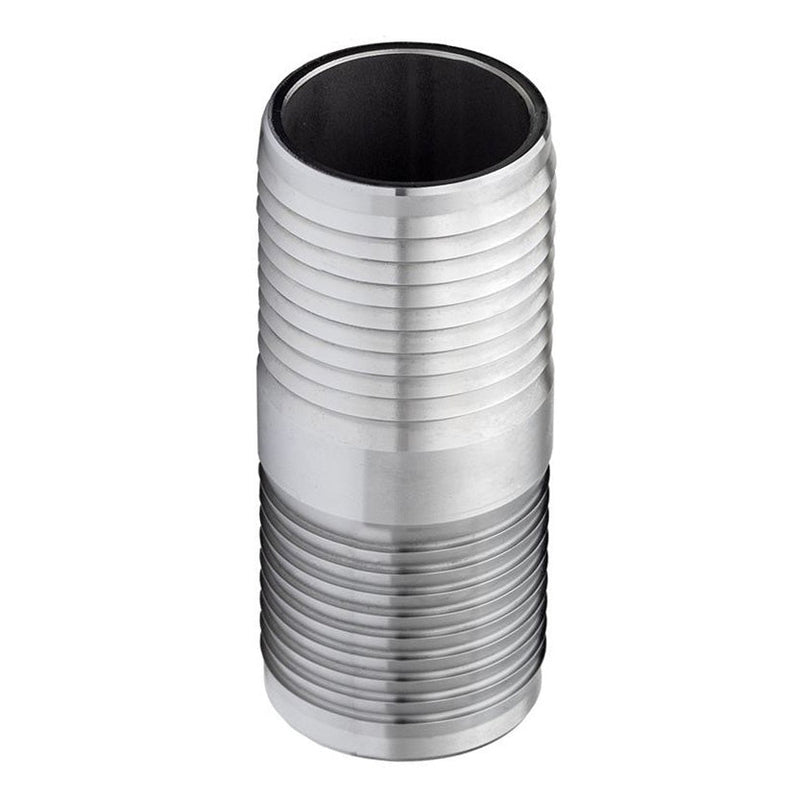

SSHM075 by Kuriyama | SSHM Series | Hose Mender | 3/4" Hose Barb x 3/4" Hose Barb | 316 Stainless Steel

SSHM075 by Kuriyama | SSHM Series | Hose Mender | 3/4" Hose Barb x 3/4" Hose Barb | 316 Stainless Steel

Save $6.17 Save $6.17
$14.94
$14.94 - $14.94
$14.94
$8.77
$8.77 - $8.77
$8.77

Kuriyama of America Inc.
Hose Mender | SSHM Series | Hose Barb x Hose Barb | 316 Stainless Steel

Versatile hose connectors designed to connect two hoses together.

Frequently used in low pressure suction and discharge applications.
Specifications for Variant SKU: SSHM075 Kuriyama
Series: SSHM Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Hose Barb, Some Ends Match
Material(s): 316 Stainless Steel
Applicable Specs & Approvals: ASTM A276

What are the Features?

  • Versatile hose connectors designed to connect two hoses together.
  • Frequently used in low pressure suction and discharge applications.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • 316 Stainless Steel - Complies with ASTM A276 grade 316 welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
SSPHM050 1/2" 250 PSI 0.11 lbs
SSHM075 3/4" 200 PSI 0.22 lbs
SSHM100 1" 150 PSI 0.33 lbs
SSHM125 1-1/4" 150 PSI 0.56 lbs
SSHM150 1-1/2" 125 PSI 0.62 lbs
SSHM200 2" 75 PSI 0.85 lbs
SSHM250 2-1/2" 75 PSI 1.90 lbs
SSHM300 3" 50 PSI 2.75 lbs
SSHM400 4" 50 PSI 3.25 lbs
SSHM600 6" 25 PSI 15.45 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
