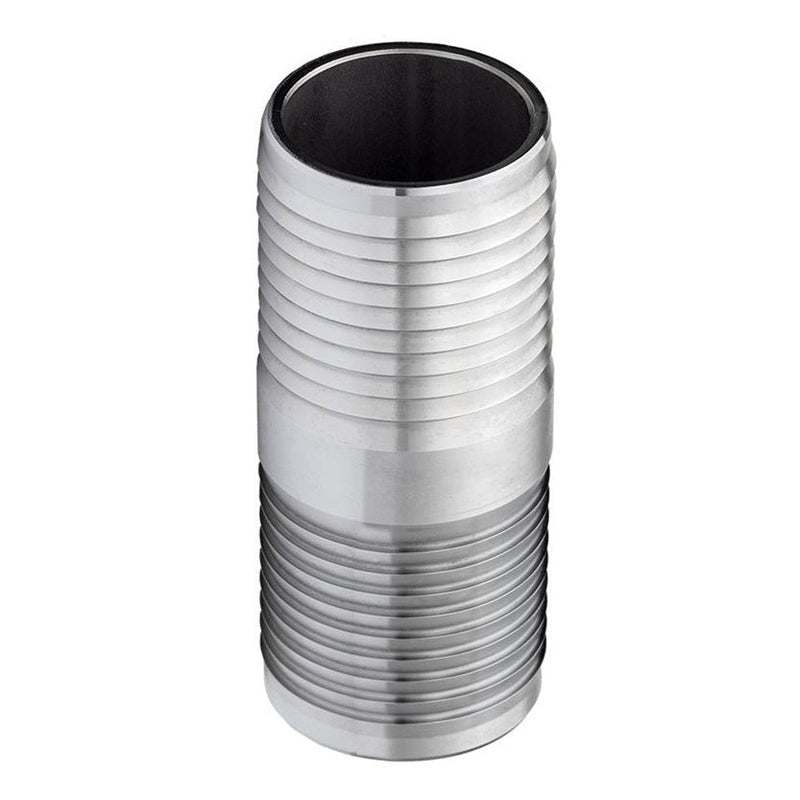

SSHM125 by Kuriyama | SSHM Series | Hose Mender | 1-1/4" Hose Barb x 1-1/4" Hose Barb | 316 Stainless Steel

Name: SSHM125 by Kuriyama | SSHM Series | Hose Mender | 1-1/4" Hose Barb x 1-1/4" Hose Barb | 316 Stainless Steel
Brand: Kuriyama
SKU: SSHM125 Kuriyama
Price: 16.34 USD
Availability: InStock

Save $8.20

$24.54

$24.54 - $24.54

$24.54

$16.34

$16.34 - $16.34

$16.34

Kuriyama of America Inc.
Hose Mender | SSHM Series | Hose Barb x Hose Barb | 316 Stainless Steel

Versatile hose connectors designed to connect two hoses together.

Frequently used in low pressure suction and discharge applications.

Specifications for Variant SKU: SSHM125 Kuriyama
Series:	SSHM Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Hose Barb, 1-1/4in Hose Barb, Some Ends Match
Material(s):	316 Stainless Steel
Applicable Specs & Approvals:	ASTM A276

What are the Features?

Versatile hose connectors designed to connect two hoses together.
Frequently used in low pressure suction and discharge applications.
Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

316 Stainless Steel - Complies with ASTM A276 grade 316 welded pipe.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
SSPHM050	1/2"	250 PSI	0.11 lbs
SSHM075	3/4"	200 PSI	0.22 lbs
SSHM100	1"	150 PSI	0.33 lbs
SSHM125	1-1/4"	150 PSI	0.56 lbs
SSHM150	1-1/2"	125 PSI	0.62 lbs
SSHM200	2"	75 PSI	0.85 lbs
SSHM250	2-1/2"	75 PSI	1.90 lbs
SSHM300	3"	50 PSI	2.75 lbs
SSHM400	4"	50 PSI	3.25 lbs
SSHM600	6"	25 PSI	15.45 lbs
