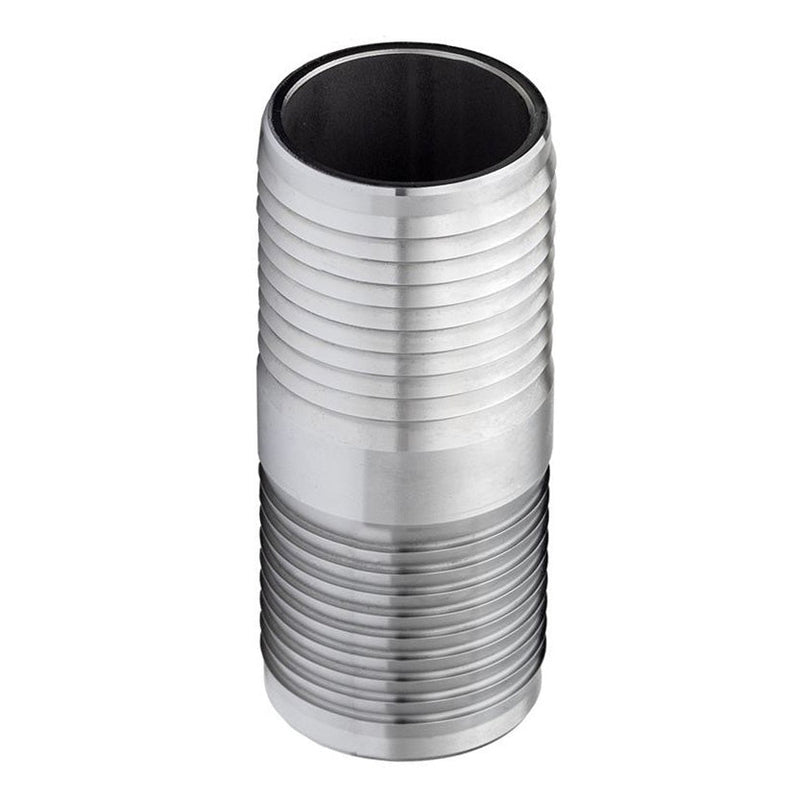

SSHM400 by Kuriyama | SSHM Series | Hose Mender | 4" Hose Barb x 4" Hose Barb | 316 Stainless Steel

SSHM400 by Kuriyama | SSHM Series | Hose Mender | 4" Hose Barb x 4" Hose Barb | 316 Stainless Steel

Save $18.31 Save $18.31
$104.29
$104.29 - $104.29
$104.29
$85.98
$85.98 - $85.98
$85.98

Kuriyama of America Inc.
Hose Mender | SSHM Series | Hose Barb x Hose Barb | 316 Stainless Steel

Versatile hose connectors designed to connect two hoses together.

Frequently used in low pressure suction and discharge applications.
Specifications for Variant SKU: SSHM400 Kuriyama
Series: SSHM Series
Shape (Orientation): Straight
Ends Configuration: 4in Hose Barb, 4in Hose Barb, Some Ends Match
Material(s): 316 Stainless Steel
Applicable Specs & Approvals: ASTM A276

What are the Features?

  • Versatile hose connectors designed to connect two hoses together.
  • Frequently used in low pressure suction and discharge applications.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • 316 Stainless Steel - Complies with ASTM A276 grade 316 welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
SSPHM050 1/2" 250 PSI 0.11 lbs
SSHM075 3/4" 200 PSI 0.22 lbs
SSHM100 1" 150 PSI 0.33 lbs
SSHM125 1-1/4" 150 PSI 0.56 lbs
SSHM150 1-1/2" 125 PSI 0.62 lbs
SSHM200 2" 75 PSI 0.85 lbs
SSHM250 2-1/2" 75 PSI 1.90 lbs
SSHM300 3" 50 PSI 2.75 lbs
SSHM400 4" 50 PSI 3.25 lbs
SSHM600 6" 25 PSI 15.45 lbs
