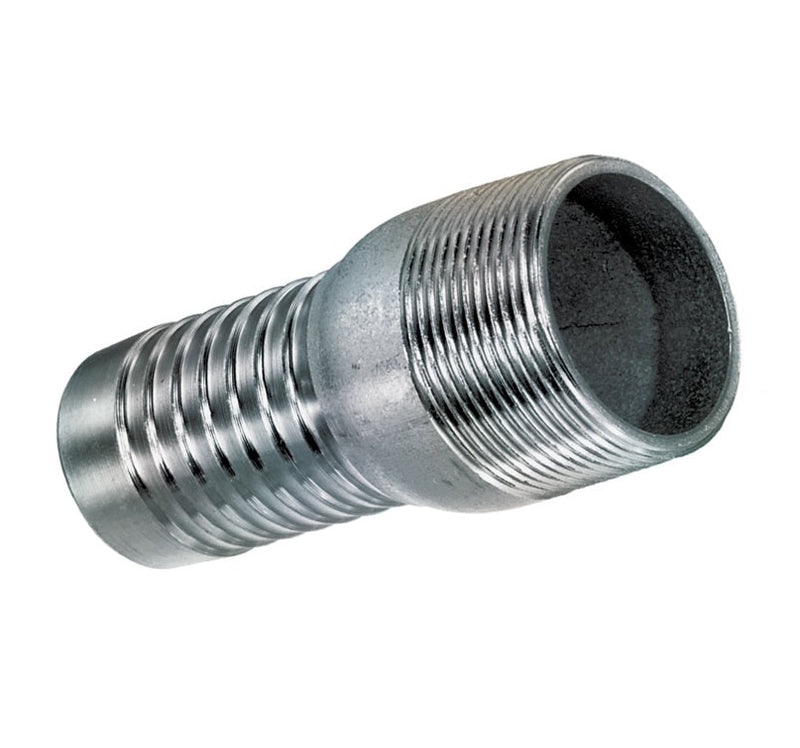

SSN200 by Kuriyama | SSN Series | Combination Hose Nipple | 2" Male NPT x 2" Hose Barb | 316 Stainless Steel

SSN200 by Kuriyama | SSN Series | Combination Hose Nipple | 2" Male NPT x 2" Hose Barb | 316 Stainless Steel

Save $12.30 Save $12.30
$48.03
$48.03 - $48.03
$48.03
$35.73
$35.73 - $35.73
$35.73

Kuriyama of America Inc.
Combination Hose Nipple | SSN Series | Male NPT x Hose Barb | 316 Stainless Steel

Versatile hose connectors designed to connect hose and pipes.

Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
Specifications for Variant SKU: SSN200 Kuriyama
Series: SSN Series
Shape (Orientation): Straight
Ends Configuration: 2in Male NPT, 2in Hose Barb
Material(s): 316 Stainless Steel
Applicable Specs & Approvals: ASTM A276

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • 316 Stainless Steel - Complies with ASTM A276 grade 316 welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
SSN050 1/2" 125 PSI 0.18 lbs
SSN075 3/4" 125 PSI 0.26 lbs
SSN100 1" 125 PSI 0.35 lbs
SSN125 1-1/4" 125 PSI 0.55 lbs
SSN150 1-1/2" 125 PSI 0.66 lbs
SSN200 2" 75 PSI 1.16 lbs
SSN250 2-1/2" 75 PSI 1.31 lbs
SSN300 3" 75 PSI 2.20 lbs
SSN400 4" 75 PSI 3.31 lbs
SSN500 5" 75 PSI 8.82 lbs
SSN600 6" 75 PSI 11.02 lbs
