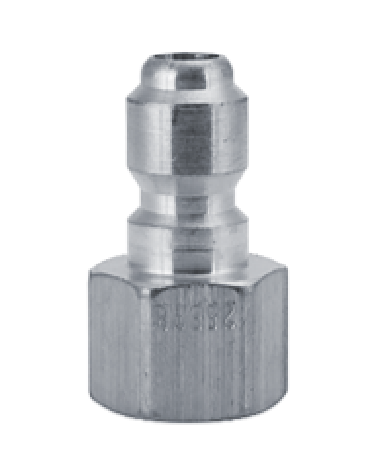

ST2F2-S-E Breco by Foster | FST Series | Straight-Thru Industrial Interchange | 1/4" Female NPT Thread | Extended Plug | Steel

Save $5.46

$11.51

$11.51 - $11.51

$11.51

$6.05

$6.05 - $6.05

$6.05

Foster Quick Disconnects - FST Series Straight Thru Plug - Breco

Specifications for Variant SKU: ST2F2-S-E ZSi-Foster
Brand:	Breco
Series:	ST Series
Shape (Orientation):	Straight
Material(s):	Steel
Special Properties:	Long

Interchange:
Straight-Thru Industrial Interchange. Standard industrial interchange design, most widely used in industry. Within each series, only sockets and plugs of the same size will couple together.
Features:
Type: FST Straight-Thru, No valve in either socket or plug. Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect. Options: Ball Lock (BL) - Locks socket against accidental disconnect. To connect, align ball with slot. After connection, rotate sleeve to lock. To disconnect, realign ball with slot and retract sleeve. Seal Compound: Standard seals are Buna-N Performance Data Flow: Couplers have same inside diameter as nominal pipe. Rated Pressure: Rated pressures as defined by ANSI/B93.2-1986, based on 4:1 Safety Factor and non-shock service. Vacuum Service: 27" Hg maximum NOTE: Only Sockets & Plugs with same prefix digits connect together. Example: 25FS & 25MPB

Male Plug Part Number	Brand	Female Coupler Part Number	FPT Size	Description
12FPB	Foster	12FS 12FSS	1/8"	Brass
12FPS	Foster	12FS 12FSS	1/8"	303 Stainless Steel
ST1F1-B	Breco	1STF1-B 1STF1-SS	1/8"	Brass
ST1F1-SS	Breco		1/8"	303 Stainless Steel
ST1F1-S	Breco		1/8"	Steel
25FP	Foster	25FS 25FSS	1/4"	Steel
25FPB	Foster		1/4"	Brass
25FPS	Foster		1/4"	303 Stainless Steel
2STF2-B	Breco	2STF2-B 2STF2-SS	1/4"	Brass
ST2F2-SS	Breco		1/4"	303 Stainless Steel
ST2F2-S	Breco		1/4"	Steel
ST2F2-S-E (Extended)	Breco		1/4"	Steel
38FP	Foster	38FS 38FSS	3/8"	Steel
38FPB	Foster		3/8"	Brass
38FPS	Foster		3/8"	303 Stainless Steel
ST3F3-B	Breco	3STF3-B 3STF3-SS	3/8"	Brass
ST3F3-SS	Breco		3/8"	303 Stainless Steel
ST3F3-S	Breco		3/8"	Steel
50FP	Foster	50FS 50FSS	1/2"	Steel
50FPB	Foster		1/2"	Brass
50FPS	Foster		1/2"	303 Stainless Steel
ST4F4-B	Breco	4STF4-B 4STF4-SS	1/2"	Brass
4STF4-SS	Breco	4STF4-B 4STF4-SS	1/2"	303 Stainless Steel
75FP	Foster	75FS 75FSS	3/4"	Steel
75FPB	Foster		3/4"	Brass
75FPS	Foster		3/4"	303 Stainless Steel
ST6F6-B	Breco	6STF6-B 6STF6-SS	3/4"	Brass
ST6F6-SS	Breco	6STF6-B 6STF6-SS	3/4"	303 Stainless Steel
100FP	Foster	100FS 100FSS	1"	Steel
100FPB	Foster		1"	Brass
100FPS	Foster		1"	303 Stainless Steel
ST8F8-B	Breco	8STF8-B 8STF8-SS	1"	Brass
ST8F8-SS	Breco	8STF8-B 8STF8-SS	1"	303 Stainless Steel
125FP	Foster	125FS	1-1/4"	Steel
125FPB	Foster	125FS	1-1/4"	Brass
150FP	Foster	150FS	1-1/2"	Steel
150FPB	Foster	150FS	1-1/2"	Brass

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
