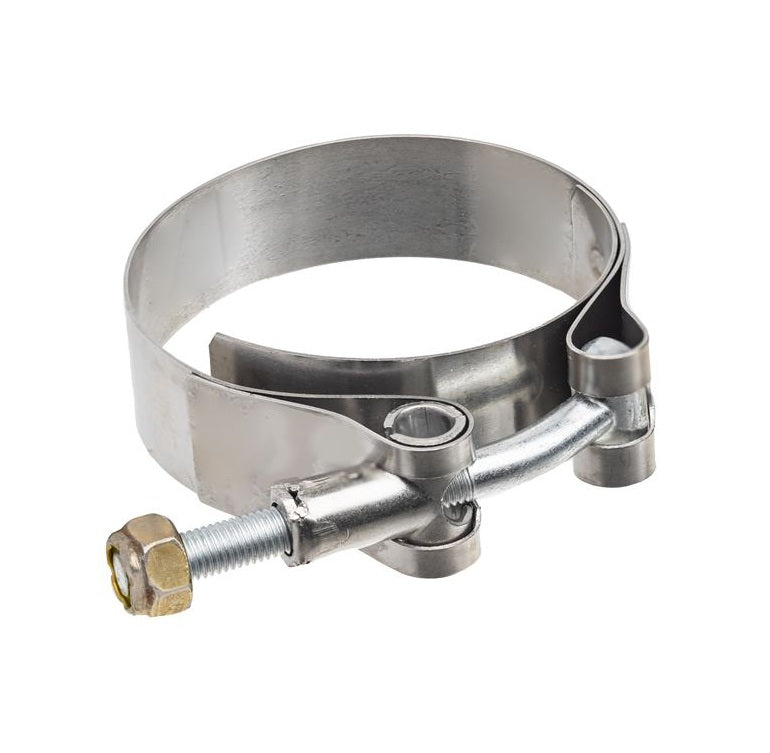

STBC-CS625 by Kuriyama | Standard Duty T-Bolt Hose Clamp | 5-15/16" to 6-5/16" Size Range | 3/4" Band Width | 300 Stainless Steel & Plated Carbon Steel

STBC-CS625 by Kuriyama | Standard Duty T-Bolt Hose Clamp | 5-15/16" to 6-5/16" Size Range | 3/4" Band Width | 300 Stainless Steel & Plated Carbon Steel

Save $6.18 Save $6.18
$11.43
$11.43 - $11.43
$11.43
$5.25
$5.25 - $5.25
$5.25

Kuriyama of America Inc.
STBC-CS Series | Standard Duty T-Bolt Hose Clamp

300 Series stainless steel band. Carbon steel plated bolt and nut.

T-Bolt design provides extra strength and creates a 360¢ª seal to prevent leaks.
Specifications for Variant SKU: STBC-CS625 Kuriyama
Series: STBC-CS Series
Material(s): 300 Stainless Steel, Plated Carbon Steel
Applicable Specs & Approvals: SAE J1508 Type TB
Clamp Width: 0.75in
Minimum Clamp I.D.: 5.9375in
Maximum Clamp I.D.: 6.3125in

What are the Features?

  • T-Bolt design provides extra strength and creates a 360° seal to prevent leaks.
  • Hex nut provides easy installation.
  • Meets SAE J1508 Type TB.

How is it Constructed?

  • 300 Series stainless steel band.
  • Carbon steel plated bolt and nut.
Part Number Size Range
(in)		 Band
Width
(in)		 Maximum
Torque
(ft lbs.)
STBC-CS131 1-1/4" - 1-1/2" 3/4" 9 ft lbs
STBC-CS150 1-5/16" - 1-9/16" 3/4" 9 ft lbs
STBC-CS175 1-9/16" - 1-13/16" 3/4" 9 ft lbs
STBC-CS188 1-11/16" - 1-15/16" 3/4" 9 ft lbs
STBC-CS200 1-13/16" - 2-1/16" 3/4" 9 ft lbs
STBC-CS225 2-1/16" - 2-5/16" 3/4" 9 ft lbs
STBC-CS238 2-3/16" - 2-1/2" 3/4" 9 ft lbs
STBC-CS250 2-5/16" - 2-5/8" 3/4" 9 ft lbs
STBC-CS256 2-13/32 - 2-21/32" 3/4" 9 ft lbs
STBC-CS263 2-3/8" - 2-11/16" 3/4" 9 ft lbs
STBC-CS275 2-1/2" - 2-13/16" 3/4" 9 ft lbs
STBC-CS288 2-5/8" - 2-15/16" 3/4" 9 ft lbs
STBC-CS300 2-3/4" - 3-1/16" 3/4" 9 ft lbs
STBC-CS312 2-7/8" - 3-3/16" 3/4" 9 ft lbs
STBC-CS325 2-15/16" - 3-5/16" 3/4" 9 ft lbs
STBC-CS350 3-1/4" - 3-9/16" 3/4" 9 ft lbs
STBC-CS375 3-1/2" - 3-13/16" 3/4" 9 ft lbs
STBC-CS382 3-9/16" - 3-7/8" 3/4" 9 ft lbs
STBC-CS400 3-3/4" - 4-1/16" 3/4" 9 ft lbs
STBC-CS425 3-31/32" - 4-5/16" 3/4" 9 ft lbs
STBC-CS450 4-1/4" - 4-9/16" 3/4" 9 ft lbs
STBC-CS475 4-1/2" - 4-13/16" 3/4" 9 ft lbs
STBC-CS500 4-3/4" - 5-1/16" 3/4" 9 ft lbs
STBC-CS525 5" - 5-5/16" 3/4" 9 ft lbs
STBC-CS550 5-1/4" - 5-9/16" 3/4" 9 ft lbs
STBC-CS575 5-1/2" - 5-13/16" 3/4" 9 ft lbs
STBC-CS600 5-3/4" - 6-1/16" 3/4" 9 ft lbs
STBC-CS625 5-15/16" - 6-5/16" 3/4" 9 ft lbs
STBC-CS650 6-1/4" - 6-9/16" 3/4" 9 ft lbs
STBC-CS675 6-1/2" - 6-13/16" 3/4" 9 ft lbs
STBC-CS700 6-3/4" - 7-1/32" 3/4" 9 ft lbs
STBC-CS750 8-15/16" - 9-13/32" 3/4" 9 ft lbs
