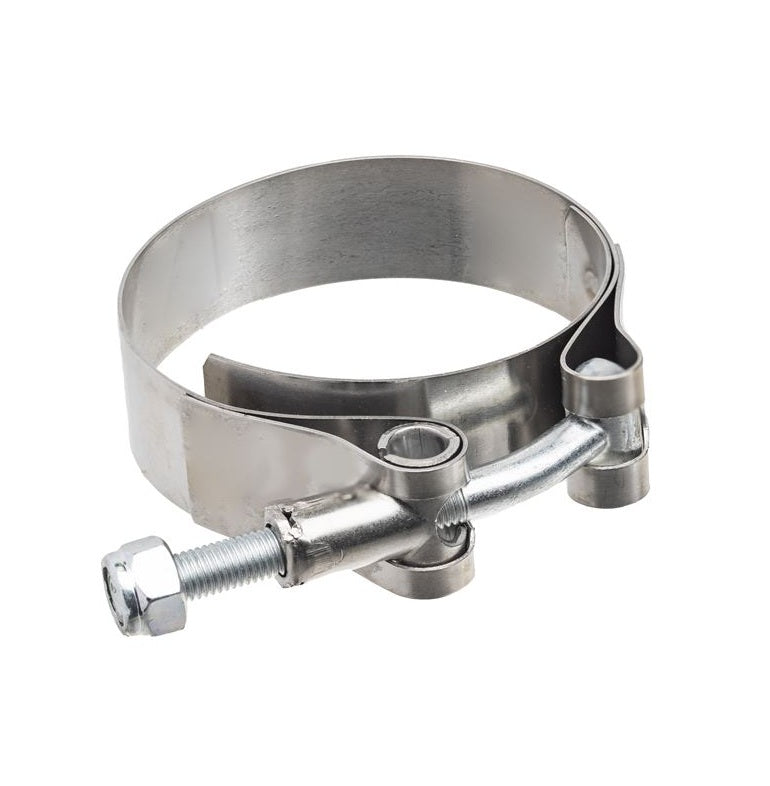

STBC-SS575 by Kuriyama | Standard Duty T-Bolt Hose Clamp | 5-1/2" to 5-13/16" Size Range | 3/4" Band Width | 300 Stainless Steel

STBC-SS575 by Kuriyama | Standard Duty T-Bolt Hose Clamp | 5-1/2" to 5-13/16" Size Range | 3/4" Band Width | 300 Stainless Steel

Save $5.31 Save $5.31
$10.64
$10.64 - $10.64
$10.64
$5.33
$5.33 - $5.33
$5.33

Kuriyama of America Inc.
STBC-SS Series | Standard Duty T-Bolt Hose Clamp

300 Series stainless steel band, bolt, and nut.

T-Bolt design provides extra strength and creates a 360¢ª seal to prevent leaks.
Specifications for Variant SKU: STBC-SS575 Kuriyama
Series: STBC-SS Series
Material(s): 300 Stainless Steel
Applicable Specs & Approvals: SAE J1508 Type TB
Clamp Width: 0.75in
Minimum Clamp I.D.: 5.5in
Maximum Clamp I.D.: 5.8125in

What are the Features?

  • T-Bolt design provides extra strength and creates a 360° seal to prevent leaks.
  • Hex nut provides easy installation.
  • Meets SAE J1508 Type TB.

How is it Constructed?

  • 300 Series stainless steel band, bolt, and nut.
Part Number Size Range
(in)		 Band
Width
(in)		 Maximum
Torque
(ft lbs.)
STBC-SS131 1-1/4" - 1-1/2" 3/4" 9 ft lbs
STBC-SS150 1-5/16" - 1-9/16" 3/4" 9 ft lbs
STBC-SS163 1-7/16" - 1-11/16" 3/4" 9 ft lbs
STBC-SS175 1-9/16" - 1-13/16" 3/4" 9 ft lbs
STBC-SS188 1-11/16" - 1-15/16" 3/4" 9 ft lbs
STBC-SS200 1-13/16" - 2-1/16" 3/4" 9 ft lbs
STBC-SS212 1-15/16" - 2-3/16" 3/4" 9 ft lbs
STBC-SS225 2-1/16" - 2-5/16" 3/4" 9 ft lbs
STBC-SS238 2-3/16" - 2-1/2" 3/4" 9 ft lbs
STBC-SS250 2-5/16" - 2-5/8" 3/4" 9 ft lbs
STBC-SS256 2-13/32" - 2-21/32" 3/4" 9 ft lbs
STBC-SS263 2-3/8" - 2-11/16" 3/4" 9 ft lbs
STBC-SS275 2-1/2" - 2-13/16" 3/4" 9 ft lbs
STBC-SS288 2-5/8" - 2-15/16" 3/4" 9 ft lbs
STBC-SS312 2-7/8" - 3-3/16" 3/4" 9 ft lbs
STBC-SS325 2-15/16" - 3-5/16" 3/4" 9 ft lbs
STBC-SS550 5-1/4" - 5-9/16" 3/4" 9 ft lbs
STBC-SS575 5-1/2" - 5-13/16" 3/4" 9 ft lbs
STBC-SS600 5-3/4" - 6-1/16" 3/4" 9 ft lbs
STBC-SS625 5-15/16" - 6-5/16" 3/4" 9 ft lbs
STBC-SS650 6-1/4" - 6-9/16" 3/4" 9 ft lbs
STBC-SS675 6-1/2" - 6-13/16" 3/4" 9 ft lbs
STBC-SS700 6-3/4" - 7-1/32" 3/4" 9 ft lbs
STBC-SS725 7-1/16" - 7-1/4" 3/4" 9 ft lbs
STBC-SS750 7-1/4" - 7-9/16" 3/4" 9 ft lbs
STBC-SS800 7-3/4" - 8-1/16" 3/4" 9 ft lbs
STBC-SS825 7-15/16" - 8-5/16" 3/4" 9 ft lbs
STBC-SS850 8-1/4" - 8-9/16" 3/4" 9 ft lbs
STBC-SS888 8-5/8" - 8-15/16" 3/4" 9 ft lbs
STBC-SS900 8-3/4" - 9-1/16" 3/4" 9 ft lbs
STBC-SS950 9-1/4" - 9-9/16" 3/4" 9 ft lbs
STBC-SS1000 9-3/4" - 10-1/16" 3/4" 9 ft lbs
STBC-SS1050 10" - 10-9/16" 3/4" 9 ft lbs
STBC-SS1088 10-5/8" - 10-15/16" 3/4" 9 ft lbs
STBC-SS1200 11-3/4" - 12-1/16" 3/4" 9 ft lbs
STBC-SS1288 12-5/8" - 12-15/16" 3/4" 9 ft lbs
