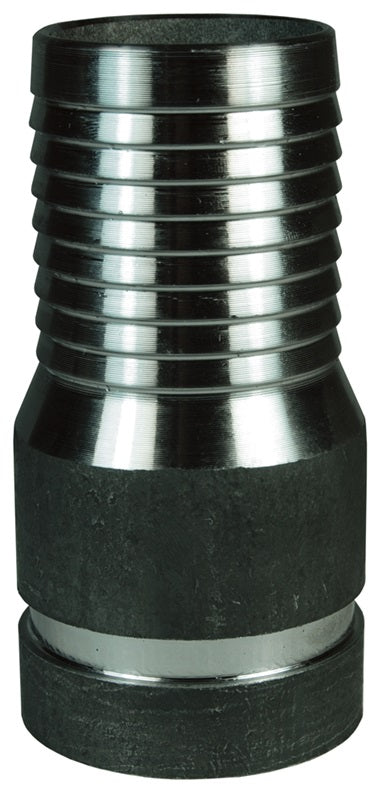

STV15 by Dixon Valve | King Combination Nipple | Grooved End | 1-1/4" Grooved End x 1-1/4" Hose ID | Unplated Steel

Name: STV15 by Dixon Valve | King Combination Nipple | Grooved End | 1-1/4" Grooved End x 1-1/4" Hose ID | Unplated Steel
Brand: Dixon
SKU: STV15 Dixon
Price: 10.92 USD
Availability: InStock

Save $7.28

$18.20

$18.20 - $18.20

$18.20

$10.92

$10.92 - $10.92

$10.92

Dixon Valve
King Combination Nipple | Grooved End | Grooved End x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.

Specifications for Variant SKU: STV15 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Grooved End, 1-1/4in Hose Barb
Material(s):	Steel

Safety Notes:
Not for compressible products such as air or nitrogen. King Combination Nipples are not recommended for steam. The working pressure may vary with the construction of the hose, the type of clamping system used and the application. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

Unplated Steel Part Number	316 Stainless Steel Part Number	Hose ID
STV10	-	1"
STV15	-	1-1/4"
STV20	RSTV20	1-1/2"
STV25	RSTV25	2"
STV30	-	2-1/2"
STV35	RSTV35	3"
STV40	RSTV40	4"
STV50	-	5"
STV60	-	6"
STV80	-	8"
STV100	-	10"
STV120	-	12"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
