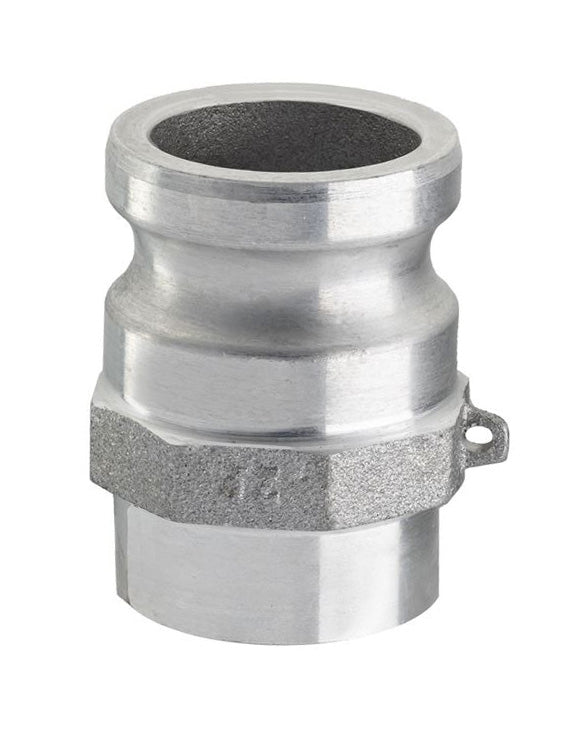

SW-ALA200 by Kuriyama | SW-ALA Series | Part A | Cam & Groove Adapter | 2" Adapter x 2" Socket Weld End | Aluminum

Save $6.59

$15.59

$15.59 - $15.59

$15.59

$9.00

$9.00 - $9.00

$9.00

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SW-ALA Series | Part A | Adapter x Socket Weld End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: SW-ALA200 Kuriyama
Series:	SW-ALA Series
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	2in Male Cam & Groove, 2in Weld End
Material(s):	Aluminum

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.
Socket weld items are designed for use with schedule 40 pipe.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
SW-ALA150	1-1/2"	250 PSI	B26 Grade 713	0.37 lbs
SW-ALA200	2"	250 PSI	B26 Grade 713	0.45 lbs
SW-ALA250	2-1/2"	150 PSI	B26 Grade 713	0.65 lbs
SW-ALA300	3"	150 PSI	B26 Grade 713	0.77 lbs
SW-ALA400	4"	150 PSI	B26 Grade 713	1.41 lbs
SW-ALA500	5"	75 PSI	B26 Grade 713	1.70 lbs
SW-ALA600	6"	75 PSI	B26 Grade 713	2.08 lbs
