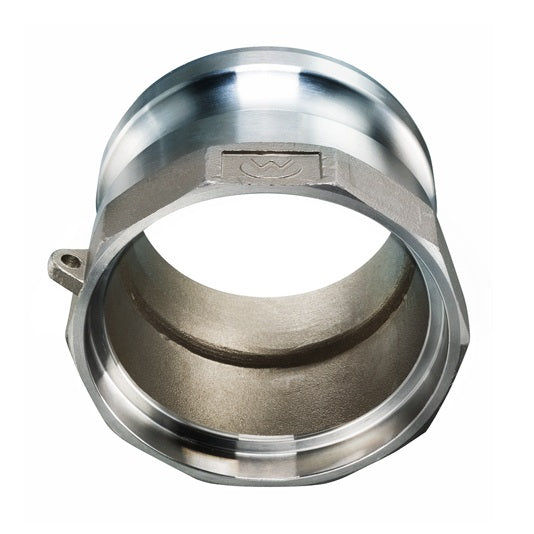

SW-SSA400 by Kuriyama | SW-SSA Series | Part A | Cam & Groove Adapter | 4" Adapter x 4" Socket Weld End | 316 Stainless Steel

SW-SSA400 by Kuriyama | SW-SSA Series | Part A | Cam & Groove Adapter | 4" Adapter x 4" Socket Weld End | 316 Stainless Steel

Save $22.33 Save $22.33
$130.53
$130.53 - $130.53
$130.53
$108.20
$108.20 - $108.20
$108.20

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SW-SSA Series | Part A | Adapter x Socket Weld End | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SW-SSA400 Kuriyama
Series: SW-SSA Series
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 4in Male Cam & Groove, 4in Weld End
Material(s): 316 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.
  • Socket weld items are designed for use with schedule 40 pipe.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
SW-SSA150 1-1/2" 250 PSI A666/316 0.71 lbs
SW-SSA200 2" 250 PSI A666/316 1.37 lbs
SW-SSA250 2-1/2" 150 PSI A666/316 1.38 lbs
SW-SSA300 3" 150 PSI A666/316 1.87 lbs
SW-SSA400 4" 150 PSI A666/316 3.95 lbs
SW-SSA500 5" 75 PSI A666/316 4.46 lbs
SW-SSA600 6" 75 PSI A666/316 6.16 lbs
