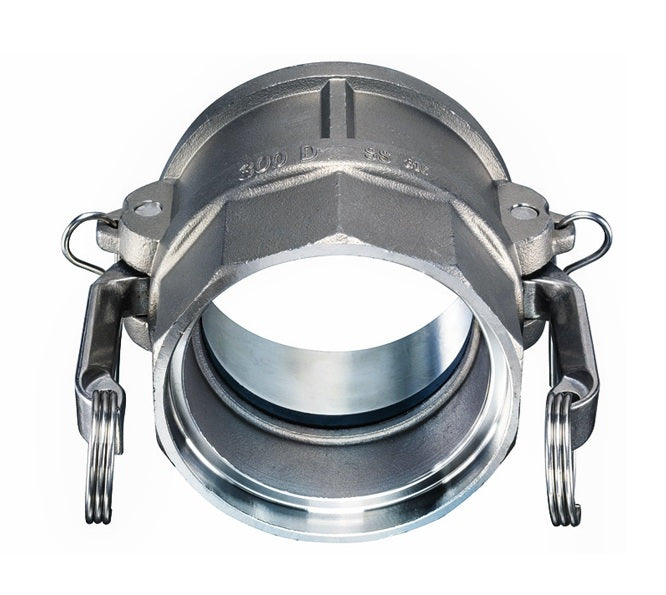

SW-SSD400 by Kuriyama | SW-SSD Series | Part D | Cam & Groove Adapter | 4" Coupler x 4" Socket Weld End | 316 Stainless Steel

SW-SSD400 by Kuriyama | SW-SSD Series | Part D | Cam & Groove Adapter | 4" Coupler x 4" Socket Weld End | 316 Stainless Steel

Save $28.34 Save $28.34
$172.59
$172.59 - $172.59
$172.59
$144.25
$144.25 - $144.25
$144.25

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SW-SSD Series | Part D | Coupler x Socket Weld End | 316 Stainless Steel

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SW-SSD400 Kuriyama
Series: SW-SSD Series
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 4in Female Cam & Groove, 4in Weld End
Material(s): 316 Stainless Steel

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.
  • Socket weld items are designed for use with schedule 40 pipe.

What are the Materials?

  • ASTM stainless steel alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
SW-SSD150 1-1/2" 250 PSI A666/316 1.41 lbs
SW-SSD200 2" 250 PSI A666/316 1.70 lbs
SW-SSD250 2-1/2" 250 PSI A666/316 2.35 lbs
SW-SSD300 3" 250 PSI A666/316 3.30 lbs
SW-SSD400 4" 150 PSI A666/316 5.32 lbs
SW-SSD500 5" 150 PSI A666/316 7.81 lbs
SW-SSD600 6" 150 PSI A666/316 20.79 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
