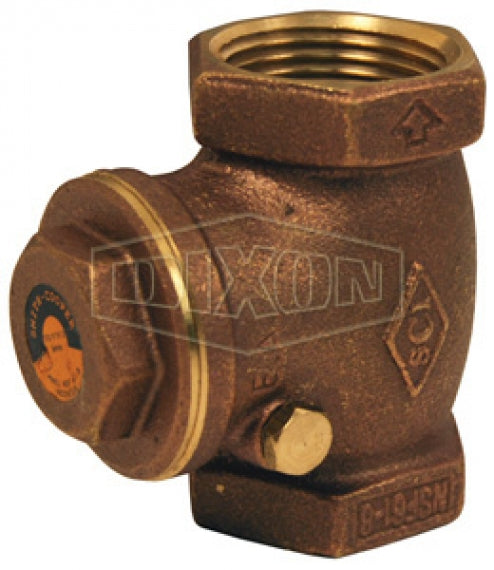

SWCV125 by Dixon Valve | Swing Check Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | Brass

SWCV125 by Dixon Valve | Swing Check Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | Brass

Save $28.30 Save $28.30
$70.75
$70.75 - $70.75
$70.75
$42.45
$42.45 - $42.45
$42.45

Dixon Valve & Coupling
Swing Check Valve | Brass

For use in plumbing and liquid piping systems to prevent back flow.

For horizontal or vertical use.
Specifications for Variant SKU: SWCV125 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • Full flow performance with a minimum of turbulence or pressure loss.
  • A positive seating disc allows flow only in one direction and a screw-in cap provides easy access for periodic cleaning.
Materials:
  • Brass disc.
Specifications:
  • Pressure rating: 200 PSI WOG
  • Temperature range: -20° to 150°F (-29°C to 66°C)
Part Number Female NPT x Female NPT
SWCV50 1/2" x 1/2"
SWCV75 3/4" x 3/4"
SWCV100 1" x 1"
SWCV125 1-1/4" x 1-1/4"
SWCV150 1-1/2" x 1-1/2"
SWCV200 2" x 2"
SWCV300 3" x 3"
SWCV400 4" x 4"
