T04-4X4 Couplamatic T Series Coupling - NPTF - Male Swivel - 1/4" Hose ID - 1/4-18 Thread Size

T04-4X4 by Couplamatic | T Series Coupling | 1/4" Hose ID x 1/4-18 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating | Pack of 10

Save $33.41

$83.53

$83.53 - $83.53

$83.53

$50.12

$50.12 - $50.12

$50.12

Couplamatic Systems Inc.
T Series - NPTF - Male Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: T04-4X4 Couplamatic \| 10 \|
Series:	T Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	TR14 Series \| RD7 Series \| RD7NC Series \| RD7TL Series \| RD7TLNC Series \| H7 Series \| H7NC Series \| H7TL Series \| H7TLNC Series

T Series — PTFE / Reduced OD 100R7

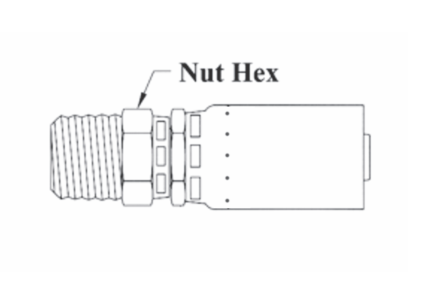

T04 T Series — NPTF Male Swivel, Straight

T04 is the NPTF Male Swivel, Straight configuration of the T Series, terminating SAE 100R14 PTFE hose, 1/4"–3/8" reduced OD 100R7 hose, and standard 1/2"–1" 100R7 hose.

1

What are the main product features?

The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
Trivalent Zinc Plating
Covers PTFE and reduced OD hose — the configurations the 3 Series does not fit.
Minimum order quantities apply — 10 pieces for 3/16"–1/2", 5 pieces for 3/4" and 1".

2

Which sizes are available?

Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Weatherhead E
T04-4X4	1/4"	1/4"	1/4-18	9/16"	5/8"	04E-J04
T04-5X4	5/16"	1/4"	1/4-18	11/16"	3/4"	05E-J04
T04-6X6	3/8"	3/8"	3/8-18	11/16"	3/4"	06E-J06
T04-8X8	1/2"	1/2"	1/2-14	3/4"	7/8"	08E-J08

i

Swivel for installation purposes only. Leakage may occur at low pressure. The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
