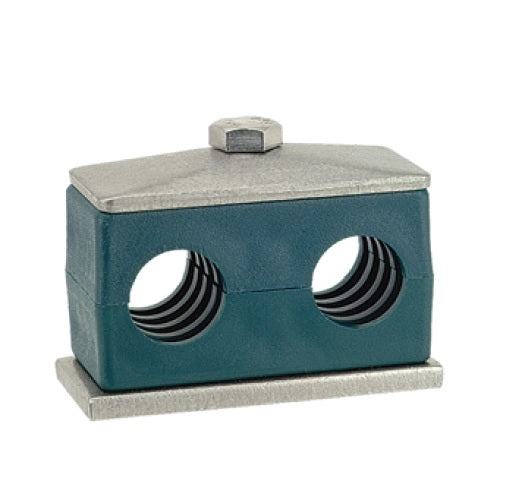

T1006S ZSi-Foster | Weld Mount Beta Clamp | Twin Series | 3/8" x 3/8" Tube | Polypropylene/Steel

T1006S by ZSi-Foster | Weld Mount Beta Clamp | Twin Series | 3/8" x 3/8" Tube | Polypropylene/Steel

Save $0.39 Save $0.39
$3.81
$3.81 - $3.81
$3.81
$3.42
$3.42 - $3.42
$3.42

ZSI-Foster
Beta Hydraulic Clamps - Twin Series - Weld Mount - Polypropylene/Steel

- Cushions are Polypropylene (Green Color).

- Ideal for general-duty applications subject to moderate levels of shock and vibration.
Specifications for Variant SKU: T1006S ZSI-Foster
Series: Twin Series
Maximum Clamp I.D.: 0.375
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:
Assembly Includes:
Quantity Description
1 Each Hex Bolt
1 Each Cover Plate
1 Set Cushions
1 Each Weld Plate
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
- T1007S 1/8" x 1/8" 1/4-20 x 1-3/8
T1004S T2009S 1/4" x 1/4" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T1006S T2011S 3/8" x 3/8" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T2008S T3014S 1/2" x 1/2" Tube: 5/16-18 x 1-3/8
Pipe: 5/16-18 x 1-3/4
T2010S - 5/8" x 5/8" 5/16-18 x 1-3/8
T3012S T4017S 3/4" x 3/4" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2
T3015S - 7/8" x 7/8" 5/16-18 x 1-3/4
T3016S T5021S 1" x 1" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2-3/8
T4018S - 1-1/8" x 1-1/8" 5/16-18 x 2
T5020S T5027S 1-1/4" x 1-1/4" 5/16-18 x 2-3/8
T5024S - 1-1/2" x 1-1/2" 5/16-18 x 2-3/8
