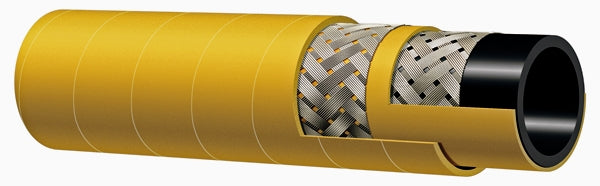

T142AK300X50 Alfagomma by Kuriyama | T142AK Series | High Temp Compressed Air Hose | 3" ID | 3.54" OD | 450 PSI | Yellow | 50ft

T142AK300X50 Alfagomma by Kuriyama | T142AK Series | High Temp Compressed Air Hose | 3" ID | 3.54" OD | 450 PSI | Yellow | 50ft Length

Save $625.85 Save $625.85
$1,889.82
$1,889.82 - $1,889.82
$1,889.82
$1,263.97
$1,263.97 - $1,263.97
$1,263.97

Kuriyama of America Inc.
Alfagomma | T142AK Series | High Temp Compressed Air Hose

High pressure air for mines and quarries.

Designed for long lasting service and maximum safety in heavy duty applications where resistance to oil is required.

Package Quantity: 50 Foot

Specifications for Variant SKU: T142AK300X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T142AK Series
Hose Color(s): Yellow
Internal Diameter: 3in
Outer Diameter: 3.54in
Tubing Construction: Nitrile
Cover Construction: SBR/Nitrile Blend
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: High pressure air for mines and quarries. SAE Rating: -
Other Ratings: - Tube: Black Extruded NBR (RMA Class A) - oil mist resistant.
Reinforcement: High tensile steel wire braids. Cover: Yellow SBR/NBR - abrasion, ozone, hydrocarbon and flame resistant - pin pricked.
Service Temperature Range: -40°F (-40°C) to +248°F (+120°C) Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands.
Branding: ALFAGOMMA - ITALY T142 HIGH TEMP STEEL AIR - OIL RESISTANT (embossed)
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working Pressure		 Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) lbs/ft
T142AK200X50 T142AK200X100 2" 51mm 2.52" 64mm 600 PSI 10" 1.16 lbs/ft
- T142AK250X100 2-1/2" 63mm 3.03" 77mm 450 PSI 12-1/2" 1.93 lbs/ft
T142AK300X50 T142AK300X100 3" 76mm 3.54" 90mm 450 PSI 15" 1.91 lbs/ft
