T155AK050X50 Alfagomma by Kuriyama | T155AK Series | Compressed "Air Drill" Hose | 1/2" ID | 0.83" OD | 300 PSI | Yellow | 50ft Length

Save $44.73

$185.24

$185.24 - $185.24

$185.24

$140.51

$140.51 - $140.51

$140.51

Kuriyama of America Inc.
Alfagomma | T155AK Series | 300 PSI Air Drill Hose

High quality air hose for mining and construction service.

Package Quantity: 50 Foot

Specifications for Variant SKU: T155AK050X50 Kuriyama \| 50 \|
Brand:	Alfagomma
Series:	T155AK Series
Hose Color(s):	Yellow
Internal Diameter:	0.50in - 1/2in
Outer Diameter:	0.83in
Tubing Construction:	SBR/Nitrile Blend
Cover Construction:	SBR

Air Hose

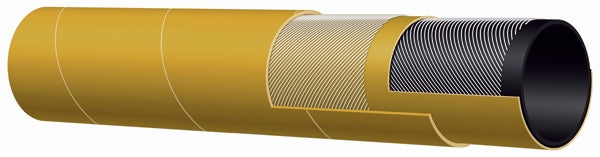

T155® Mining & Construction Air Hose

A rugged spiraled-textile air hose built for mining and construction service, rated to 300 PSI with an abrasion- and ozone-resistant cover.

★

300 PSI Rated

20 BAR maximum working pressure

✓

Oil Mist Resistant Tube

Black SBR/NBR blend

◎

Abrasion & Ozone Resistant Cover

Yellow SBR construction

⚙

High-Tensile Reinforcement

Spiraled textile cords

1

What is this product used for?

Mining service
Construction service

2

What are the key specifications?

Application

Mining and construction service

Service Temperature Range

-22°F (-30°C) to +176°F (+80°C)

Tube

Black SBR/NBR blend — oil mist resistant.

Reinforcement

Spiraled, high tensile textile cords.

Cover

Yellow SBR — abrasion and ozone resistant.

Branding

ALFAGOMMA - ITALY - T155 20 BAR (300 PSI) AIR (in blue letters)

i

Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, attached with 2 or 4 bolt interlocking clamps or bands. Universal couplings may be used on sizes (1/2" - 2").

3

Which options or configurations are available?

Part Number 50ft	Part Number 100ft	ID		OD		Max Rec. Working Pressure	Weight
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	Max Rec. Working Pressure	Weight
T155AK050X50	T155AK050X100	1/2"	13mm	0.83"	21mm	300 PSI	0.22 lbs/ft
—	T155AK075X100	3/4"	19mm	1.14"	29mm	300 PSI	0.38 lbs/ft
T155AK100X50	T155AK100X100	1"	25mm	1.38"	35mm	300 PSI	0.48 lbs/ft
—	T155AK125X100	1-1/4"	32mm	1.73"	44mm	300 PSI	0.60 lbs/ft
—	T155AK150X100	1-1/2"	38mm	1.97"	50mm	300 PSI	0.70 lbs/ft
T155AK200X50	T155AK200X100	2"	51mm	2.56"	65mm	300 PSI	1.12 lbs/ft
T155AK250X50	T155AK250X100	2-1/2"	63mm	3.11"	79mm	300 PSI	1.55 lbs/ft
T155AK300X50	T155AK300X100	3"	76mm	3.62"	92mm	300 PSI	1.89 lbs/ft
T155AK400X50	T155AK400X100	4"	102mm	4.65"	118mm	300 PSI	2.47 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
