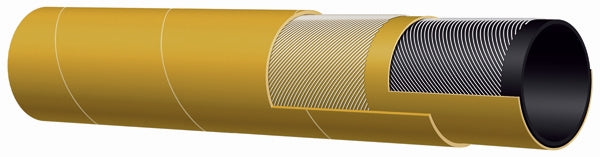

T155AK125X100 Alfagomma by Kuriyama | T155AK Series | Compressed "Air Drill" Hose | 1-1/4" ID | 1.73" OD | 300 PSI | Yellow | 100ft

T155AK125X100 Alfagomma by Kuriyama | T155AK Series | Compressed "Air Drill" Hose | 1-1/4" ID | 1.73" OD | 300 PSI | Yellow | 100ft Length

Save $131.58 Save $131.58
$605.82
$605.82 - $605.82
$605.82
$474.24
$474.24 - $474.24
$474.24

Kuriyama of America Inc.
Alfagomma | T155AK Series | 300 PSI Air Drill Hose

High quality air hose for mining and construction service.

Package Quantity: 100 Foot

Specifications for Variant SKU: T155AK125X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T155AK Series
Hose Color(s): Yellow
Internal Diameter: 1.25in - 1-1/4in
Outer Diameter: 1.73in
Tubing Construction: SBR/Nitrile Blend
Cover Construction: SBR

SPECIFICATIONS

Application: Mining and construction service SAE Rating: -
Other Ratings: - Tube: Black SBR/NBR blend - oil mist resistant.
Reinforcement: Spiraled, high tensile textile cords. Cover: Yellow SBR - abrasion and ozoneresistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, attached with 2 or 4 bolt interlocking clamps or bands. Universal couplings may be used on sizes (1/2" - 2").
Branding: ALFAGOMMA - ITALY - T155 20 BAR (300 PSI) AIR (in blue letters)
Part Number
50ft		 Part Number
100ft		 Part Number
Bulk		 ID OD Max Rec.
Working Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
T155AK050X50 T155AK050X100 T155AK050 1/2" 13mm 0.83" 21mm 300 PSI 0.22 lbs/ft
- T155AK075X100 - 3/4" 19mm 1.14" 29mm 300 PSI 0.38 lbs/ft
T155AK100X50 T155AK100X100 - 1" 25mm 1.38" 35mm 300 PSI 0.48 lbs/ft
- T155AK125X100 - 1-1/4" 32mm 1.73" 44mm 300 PSI 0.60 lbs/ft
- T155AK150X100 - 1-1/2" 38mm 1.97" 50mm 300 PSI 0.70 lbs/ft
T155AK200X50 T155AK200X100 - 2" 51mm 2.56" 65mm 300 PSI 1.12 lbs/ft
T155AK250X50 T155AK250X100 - 2-1/2" 63mm 3.11" 79mm 300 PSI 1.55 lbs/ft
T155AK300X50 T155AK300X100 - 3" 76mm 3.62" 92mm 300 PSI 1.89 lbs/ft
T155AK400X50 T155AK400X100 - 4" 102mm 4.65" 118mm 300 PSI 2.47 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
