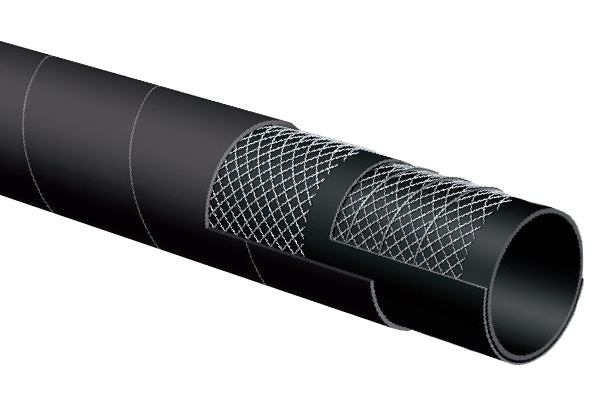

T204AA800X25 Alfagomma by Kuriyama | T204AA Series | Water Suction & Discharge Hose | 8" ID | 8.70" OD | 75 PSI | Black | 25ft Length

Save $558.66

$1,455.98

$1,455.98 - $1,455.98

$1,455.98

$897.32

$897.32 - $897.32

$897.32

Kuriyama of America Inc.
Alfagomma | T204AA Series | 175 PSI SBR Water Suction & Discharge Hose

Designed for the suction and discharge of water in irrigation, construction, and general industrial applications.

Package Quantity: 25 Foot

Specifications for Variant SKU: T204AA800X25 Kuriyama \| 25 \|
Brand:	Alfagomma
Series:	T204AA Series
Hose Color(s):	Black
Internal Diameter:	8in
Outer Diameter:	8.70in
Tubing Construction:	SBR
Cover Construction:	SBR

Water Hose

T204® Water Suction & Discharge Hose

A flexible steel-helix reinforced hose built for suction and discharge of water in irrigation and construction applications.

★

75 PSI Rated

Up to 24 inHg vacuum

✓

Steel Helix Reinforced

Spiraled textile cords with flexible steel wire

◎

Ozone & Abrasion Resistant Cover

Black SBR construction

⚙

Kink Resistant

Maintains shape under vacuum

1

What is this product used for?

Water suction
Water discharge
Irrigation service
Construction service

2

What are the key specifications?

Application

Suction and discharge of water for irrigation and construction.

Service Temperature Range

-22°F (-30°C) to +176°F (+80°C)

Tube

Black SBR.

Reinforcement

Spiraled high tensile textile cords with flexible steel helix wire.

Cover

Black SBR — ozone and abrasion resistant.

Branding

ALFAGOMMA - ITALY - T204 (embossed)

i

Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.

3

Which options or configurations are available?

Part Number	Length	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
		(in)	(mm)	(in)	(mm)
6" ID
T204AA600X20	20ft	6"	152mm	6.54"	166mm	75 PSI	24 inHg	30"	4.13 lbs/ft
T204AA600X25	25ft	6"	152mm	6.54"	166mm	75 PSI	24 inHg	30"	4.13 lbs/ft
T204AA600X50	50ft	6"	152mm	6.54"	166mm	75 PSI	24 inHg	30"	4.13 lbs/ft
T204AA600X100	100ft	6"	152mm	6.54"	166mm	75 PSI	24 inHg	30"	4.13 lbs/ft
8" ID
T204AA800X20	20ft	8"	203mm	8.70"	221mm	75 PSI	21 inHg	40"	7.06 lbs/ft
T204AA800X25	25ft	8"	203mm	8.70"	221mm	75 PSI	21 inHg	40"	7.06 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
