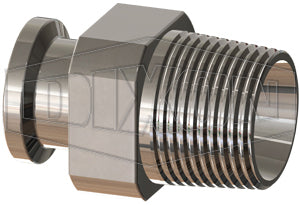

T21MP-075375PL Dixon Valve 3/4" x 3/8" 316L Stainless Steel BioPharm Clamp Adapter x Male NPT (PL Finish SF1)

T21MP-075375PL Dixon Valve 3/4" x 3/8" 316L Stainless Steel BioPharm Clamp Adapter x Male NPT (PL Finish SF1)

Save $85.97 Save $85.97
$214.93
$214.93 - $214.93
$214.93
$128.96
$128.96 - $128.96
$128.96

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - BioPharm Clamp Adapter x Male NPT - T21MP

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: T21MP-075375PL Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish – SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size
T21MP-050PL - 1/2"
T21MP-050025PL - 1/2" x 1/4""
T21MP-050075PL - 1/2" x 3/4"
T21MP-050375PL - 1/2" 3/8"
T21MP-075PL T21MP-075PM 3/4"
T21MP-075025PL - 3/4 x 1/4"
T21MP-075050PL - 3/4 x 1/2"
T21MP-075375PL - 3/4" x 3/8"
T21MP-100PL T21MP-100PM 1"
T21MP-100050PL - 1 x 1/2"
T21MP-150PL - 1-1/2"
T21MP-200PL - 2"
T21MP-250PL - 2-1/2"
T21MP-300PL - 3"
T21MP-400PL - 4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
