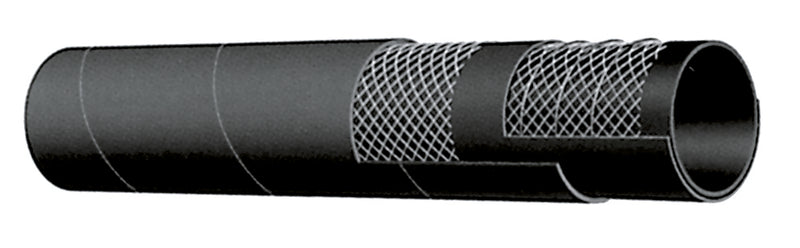

T223AA200X100 Alfagomma by Kuriyama | T223AA Series | Heavy Duty Suction & Discharge Water Hose | 2" ID | 2.48" OD | 300 PSI | Black | 100ft Length

T223AA200X100 Alfagomma by Kuriyama | T223AA Series | Heavy Duty Suction & Discharge Water Hose | 2" ID | 2.48" OD | 300 PSI | Black | 100ft Length

Save $488.20 Save $488.20
$1,138.00
$1,138.00 - $1,138.00
$1,138.00
$649.80
$649.80 - $649.80
$649.80

Kuriyama of America Inc.
Alfagomma | T223AA Series | Heavy Duty Suction & Discharge Water Hose

Ideal for heavy duty water suction and discharge applications for irrigation, agriculture, mining and construction.

Designed for long service life in heavy duty applications for water suction and delivery service.

Package Quantity: 100 Foot

Specifications for Variant SKU: T223AA200X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T223AA Series
Hose Color(s): Black
Internal Diameter: 2in
Outer Diameter: 2.48in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Applications: Heavy duty water suction and discharge applications for irrigation, agriculture, mining and construction.
Designed for long service life in heavy duty applications for water suction and delivery service.
Other Ratings: - Tube: Black conductive EPDM.
Reinforcement: Spiraled high tensile textile cords with flexible steel helix wire. Cover: Black conductive EPDM - abrasion and ozone resistant.
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: ALFAGOMMA-ITALY-223 20 BAR (300 PSI) WATER S & D (in green letters)
Part Number
40ft		 Part Number
100ft		 ID OD Max Rec.
Working Pressure		 Vacuum Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI in Hg (in) (lbs/ft)
- T223AA200X100 2" 51mm 2.48" 63mm 300 PSI 30 in Hg 8" 0.955 lbs/ft
- T223AA250X100 2-1/2" 63mm 3.03" 77mm 300 PSI 27 in Hg 10" 1.395 lbs/ft
- T223AA300X100 3" 76mm 3.54" 90mm 300 PSI 27 in Hg 12" 1.715 lbs/ft
- T223AA400X100 4" 102mm 4.57" 116mm 300 PSI 27 in Hg 16" 2.350 lbs/ft
- T223AA600X100 6" 152mm 6.61" 168mm 300 PSI 24 in Hg 24" 4.580 lbs/ft
T223AA800X40 - 8" 203mm 8.86" 225mm 300 PSI 21 in Hg 32" 7.335 lbs/ft
